33 4 470 Set of tools
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
In conjunction with: 33 4 450, 33 4 460
NOTE:
For removing and installing trailing arm rubber mount on rear axle carrier.
Series: E81, E82, E87, E88, E90, E91, E92, E93
Storage location: B49
SI number: 1 15 04 (117)
Order number: 33 4 470 Set of tools

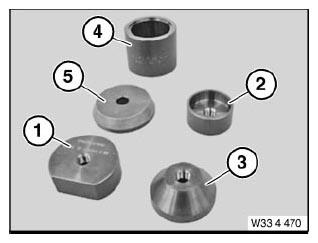

Consisting of:
1 = 33 4 471 Draw-in disk
2 = 33 4 472 Pull-out disk
3 = 33 4 473 Draw-in disk
4 = 33 4 474 Support sleeve
5 = 33 4 475 Counter support
