33 4 400 Puller fixture

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For removing inner wheel bearing races on rear axle

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E71, E81, E82, E83, E85, E86, E87, E88, E90, E91, E92, E93, F01, F02, RR1

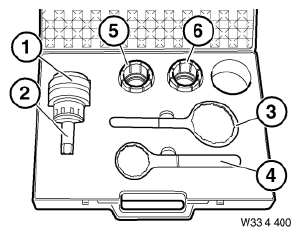

Fig 1: Identifying 33 4 400 Puller Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 05 99(426)

Order number: 33 4 400 Puller fixture

Consisting of:

1 = 33 4 401 Basic body

2 = 33 4 402 Spindle

3 = 33 4 403 Wrench, large

4 = 33 4 404 Wrench, small

5 = 33 4 405 Clamping ring (45...51 mm)

6 = 33 4 406 Clamping ring (50...55 mm)

7 = 33 4 407 Clamping ring (55...61 mm)

NOTE: Model series: E67

8 = 33 4 408 Clamping ring

9 = 33 4 409 Thrust piece
