33 4 350 Fixture

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

In conjunction with: 33 4 281, 33 4 465/466

NOTE: For removing and installing rubber mount of rear differential at rear in rear axle carrier.

Series: E81, E82, E87, E88, E90, E91, E92, E93

SI number: 1 15 05 (200)

Order number: 33 4 350 Fixture

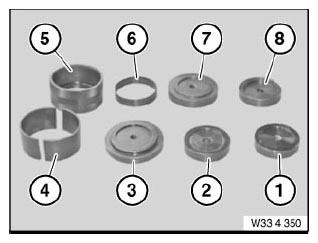

Fig 1: Identifying 33 4 350 Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 4 351 Disk (removal)

2 = 33 4 352 Disk (installation)

3 = 33 4 353 Support disk (installation)

4 = 33 4 354 Half-shells (2 x)

5 = 33 4 355 Locating ring for 33 4 354

6 = 33 4 356 Clamping ring

7 = 33 4 357 Support disk (hydraulic rubber mount)

8 = 33 4 358 Shaped disk (hydraulic rubber mount)
