33 4 310 Fixture

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

In conjunction with: 33 3 144 / 145, 33 4 161

NOTE: For installing front rubber mount on rear axle differential

Series: E60, E61, E63, E64, E81, E82, E87, E88, E90, E91, E92, E93

Storage location: C47

SI number: 1 08 03 (988)

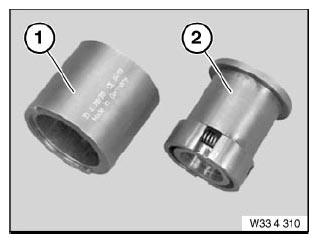

Fig 1: Identifying 33 4 310 Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 33 4 310 Fixture

Consisting of:

1 = 33 4 311 Bushing with taper

2 = 33 4 312 Thrust piece
