33 4 280 Tool

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For removing and installing rubber mount of rear axle differential mounting at rear.

Series: E60, E61, E63, E64, E65, E66, E67, E81, E82, E83, E85, E86, E87, E88, E90, E91, E92, E93, RR1

Storage location: C45

SI number: 1 14 01 (766)

Order number: 33 4 280 Tool

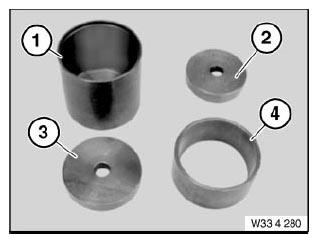

Fig 1: Identifying 33 4 280 Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 4 281 Bushing

2 = 33 4 282 Disc

3 = 33 4 283 Slip bushing

4 = 33 4 284 Disc

5 = 33 4 285 Disc (draw-in dimension 5.0 mm)

NOTE: Model series: E85, E86

6 = 33 4 286 Disc (draw-in dimension 3.5 mm)
