33 4 200 Tool kit / striker fixture

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

In conjunction with: 33 2 116

NOTE: For removing rear wheel flange when replacing wheel bearings

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E71, E81, E82, E83, E85, E86, E87, E88, E90, E91, E92, E93, F01, F02, RR1

SI number: 1 06 94 (801)

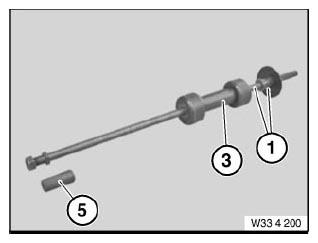

Fig 1: Identifying 33 4 200 Tool Kit / Striker Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 33 4 200 Tool kit / striker fixture

Consisting of:

1 = 33 4 201 Impact rod with handle section

3 = 33 4 203 Impact piece

5 = 33 4 205 Adapter

NOTE: For removing wheel guide joint from E53, E83.

In conjunction with: Impact tool 33 4 200

33 4 204 M20 nut and M20 flat nut

NOTE: Nuts 33 4 204 are integrated in 33 4 201. 33 4 204 is only continued as a spare part number.
