33 4 140 Universal support

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For removing rubber mount in rear axle carrier

Series: E36, E38, E39, E39tou, E46, E52, E61, E65, E66, E67, E70, E71, E81, E82, E83, E85, E86, E87, E88, E90, E91, E92, E93, R53, RR1, RR2

Storage location: A8, B8

SI number: 1 02 99 (417)

Order number: 33 4 140 Universal support

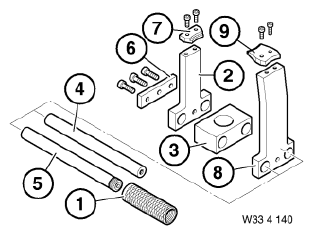

Fig 1: Identifying 33 4 140 Universal Support

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 4 141 Threaded pipe

2 = 33 4 142 Support foot (2 x)

NOTE: Model series: E38, E39, E46

3 = 33 4 143 Sliding piece

4 = 33 4 144 Guide rod

5 = 33 4 145 Guide rod

NOTE: With threaded lug

6 = 33 4 146 Locating plate

NOTE: With screws

7 = 33 4 147 Thrust piece (2 x)

NOTE: With screws - Model series: E38, E39, E46

8 = 33 4 148 Support foot, long (2 x)

NOTE: Model series: E39/2, E65, E67, RR1

9 = 33 4 149 Thrust piece (2 x)

NOTE: With countersunk head screw - Model series: E39/2, E65, E67, E87
