33 4 040 Set of tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For removing and installing rear wheel bearings

Series: E30, E36, E46, E81, E82, E83, E85, E86, E87, E88, E90, E91, E92, E93

Storage location: C8

Order number: 33 4 040 Set of tools

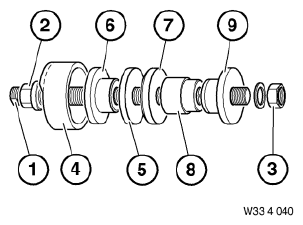

Fig 1: Identifying 33 4 040 Set Of Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 4 041 Spindle

NOTE: Model series: E30, E46

2 = 33 4 042 Nut with bearing

NOTE: Model series: E30, E46

3 = 33 4 043 Nut

NOTE: Model series: E30, E46

4 = 33 4 044 Bell

NOTE: For gripping when removing rear wheel bearing / Model series: E30

5 = 33 4 045 Pull-out disk

6 = 33 4 046 Guide sleeve

NOTE: For installing rear wheel bearing / Model series: E30

7 = 33 4 047 Thrust washer

NOTE: For installing rear wheel bearing

8 = 33 4 048 Draw-in sleeve for rear axle shaft

9 = 33 4 049 Guide sleeve

NOTE: For installing wheel bearing
