24 4 210 Socket WAF 46

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For releasing and tightening down output shaft screw/bolt (bearing side).

Transmission: GACVT16Z

SI number: 1 09 05 (188)

Order number: 24 4 210

Socket WAF 46

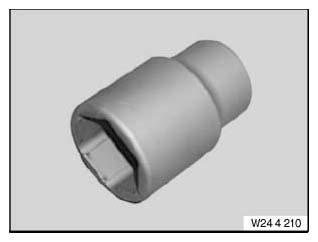

Fig 1: Identifying 24 4 210 Socket WAF 46

Courtesy of BMW OF NORTH AMERICA, INC.
