16 1 170 Tester with test adapter

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Leak-testing tank and fuel tank catch

Series: E46, E46/16, E46/2, E46/3, E46/5, E46/C, E60, E61, E63, E64, E65, E66, E67, E70, E71, E81, E82, E83, E85, E86, E87, E88, E90, E91, E92, E93, F01, F02, R50, R52, R53, R55, R56

SI number: 1 10 00 (593)

Order number: 16 1 170

Tester with test adapter

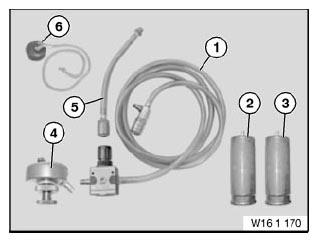

Fig 1: Identifying 16 1 170 Tester With Test Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 16 1 171 Tester

2 = 16 1 172 Test adapter for tank cap

3 = 16 1 173 Test adapter for tank cap

4 = 16 1 174 Test adapter for tank

5 = 16 1 175 Connection hose

6 = 16 1 176 Sealing plug
