34 41... Removing and installing or replacing gaiter for handbrake lever

Special tools required:

• 00 9 317

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Unclip gaiter with special tool 00 9 317.

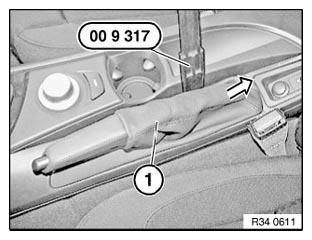

Fig 1: Uncliping Gaiter Using Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Pull gaiter (1) over handbrake lever.

Cut cable ties (2) and remove gaiter.

Installation:

Eye of cable tie must face downward.

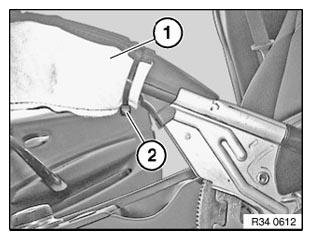

Fig 2: Identifying Gaiter And Cable Ties

Courtesy of BMW OF NORTH AMERICA, INC.
