Line Compensator (US): E60, E61, E63, E64, E90
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Installation location
If the customer so wishes, the line compensator can be installed in the left-hand side of the luggage compartment.
Retrofitting on models from 03/2005
The basic fittings for the line compensator are not present from 03/2005. This means that the line compensator can only be retrofitted at considerable expense.
Construction

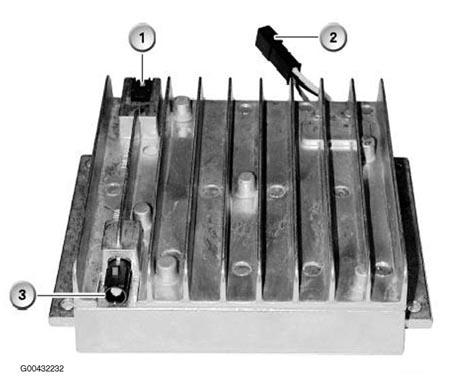

LINE COMPENSATOR (US): E60, E61, E63, E64, E90 COMPONENT LEGEND
| Item | Description | Key | Description |
|---|---|---|---|
| 1 | Aerial output to base plate | 2 | Power supply and control wire (switch-on signal) for line compensator) |
| 3 | Aerial input from SDARS aerial or telephone and GPS aerial |
How it works
The line compensator equalizes losses in the aerial cables. The line compensator ensures the full transmitting and receiving power of the mobile phone is available at the aerial. The use of the line compensator increases the transmission output to the GSM antenna to a maximum of 2 watts. Increasing the transmission power extends the range within the GSM mobile phone network.
