Bluetooth Antenna: E60, E61, E63, E64, E90, E91

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Installation location

E90, E91 In footwell, behind trim for pedals
E60, E61 In the center console, under the base plate for mobile phone
E63, E64 Under the rear shelf (parcel shelf)

Construction

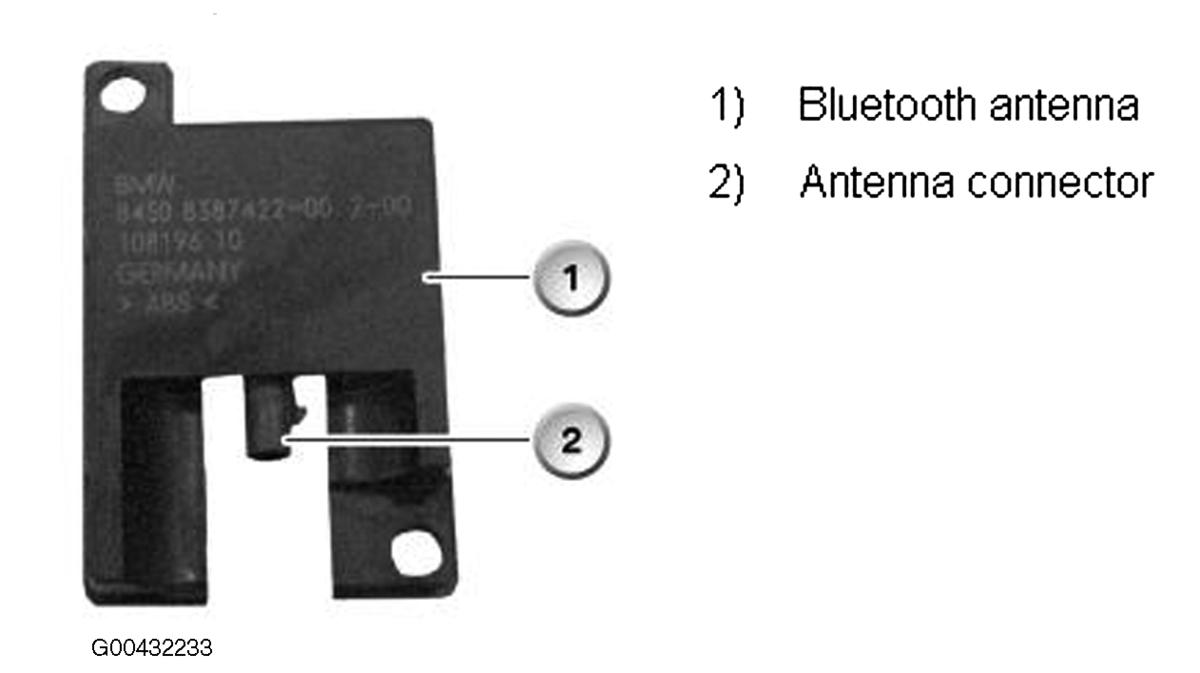

Fig 1: Locating Bluetooth Antenna: E60, E61, E63, E64, E90, E91 Components

Courtesy of BMW OF NORTH AMERICA, INC.

How it works

The bluetooth antenna is the transmit/receive aerial of the TCU control unit. The bluetooth antenna us used for communicating with equipment that has a bluetooth interface (e.g. a mobile phone). The bluetooth antenna is designed for a frequency of 2.45 GHz.
