E60, E61, E63, E64, E87, E90 Aerial Tuner
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Installation location
The aerial tuner is on the M-ASK motherboard under the drive for CD, CD-ROM or DVD.
Construction
The aerial tuner consists of a board with the single-tuner radio. In conjunction with option 663 or option 606 this board also contains the two-tuner radio. Both aerial tuners are provided with a heat protection shield to protect them from irradiation. Both tuners (not Japan version) can be coded for the whole frequency range.

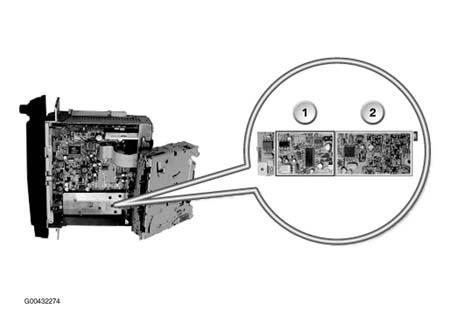

The illustration shows the M-ASK in the E60 as an example.
IDENTIFYING E60, E61, E63, E64, E87, E90 AERIAL TUNER COMPONENTS
| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Single-tuner radio | 2 | Two-tuner radio |
