E60, E61, E63, E64, E87, E90 - Yaw-Rate Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Installation location
The yaw-rate sensor is connected by plug-in contacts to the motherboard of the Car Communication Computer. The yaw-rate sensor is secured to the housing with a screw.
Construction

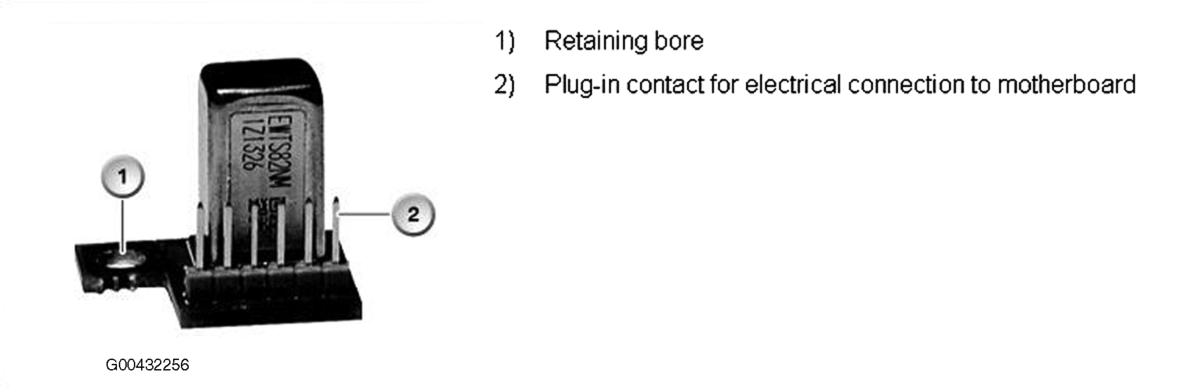

The illustration shows the example of the sensor on the E60.
How it works
The yaw-rate sensor delivers data concerning changes of direction (yaw rate) of the vehicle.
