E60, E61, E63, E64, E87, E90 - HIP Module
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Installation location
The HIP module is fitted on the right in the Car Communication Computer. It is connected to the motherboard and its processors by a ribbon cable.
Construction

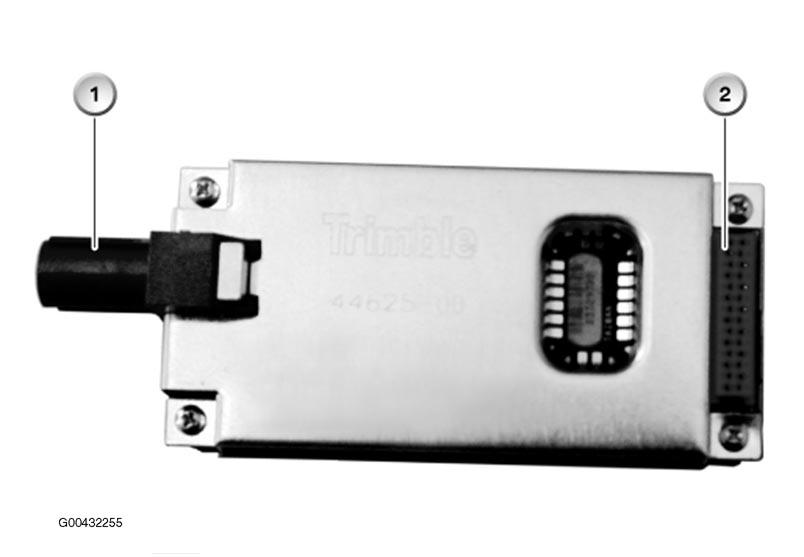

HIP MODULE CONSTRUCTION
| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Aerial input for GPS aerial | 2 | Connection for ribbon cable to motherboard |
How it works
To calculate the vehicle's position (Host Independent Positioning), navigation data are computed on the following basis:
The HIP module receives Almanac data from the GPS aerial for
- Date
- Time
- Location of the GPS satellites
- Orbits
- Operational capacity of the GPS satellites
Almanac data are selected in the HIP module and transmitted to the navigation system. With the yaw-rate sensor in the CCC, the values for change of direction (yaw rate) of the vehicle are determined. The following values are calculated from the data:
- Longitude
- Latitude
- Altitude above mean sea level
- Direction
- Speed
