E60, E61, E63, E64, E87, E90 - Front Panel
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
The front panel is the visible cover panel of the Car Communication Computer.
Installation location
The front panel consist of the cover with the slots for:
- Audio CD/CD-ROM
- MD (Japanese version)
- DVD
Construction
Behind the front panel, there are electrical connections to the control elements and the Car Communication Computer.

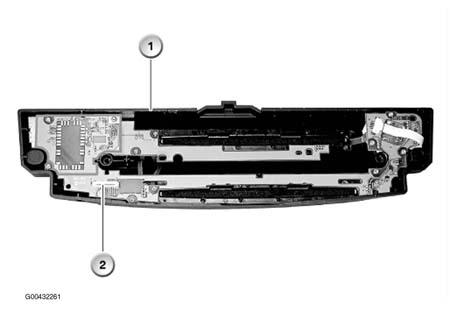

The illustration shows the example of the CCC on the E60.
FRONT PANEL COMPONENTS
| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Front panel | 2 | Connection for LIF cable (LIF = Low Insertion Force) from motherboard |
