E60, E61, E63, E64, E87, E90: GSM Antenna

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Installation location

E63, E64: The aerials are installed under the interior trim of the tailgate. As the tailgate is made of plastic, there is no interference with reception.

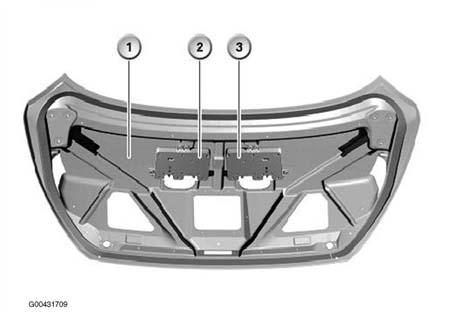

Fig 1: Locating E60, E61, E63, E64, E87, E90: GSM Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

E60, E61, E63, E64, E87, E90: GSM ANTENNA LEGEND

Key	Explanation	Key	Explanation
1	Tailgate	2	Telephone and GPS aerial
3	SDARS aerial (US only)

E87: The GSM antenna is integrated into the rod aerial. The rod aerial is also used for FM/AM/telephone and GPS reception. The rod aerial is fitted to the roof of the vehicle.

E60, E61, E90:

The GSM antenna is integrated into the telephone and GPS aerial. The telephone and GPS aerial is installed on the rear edge of the roof.

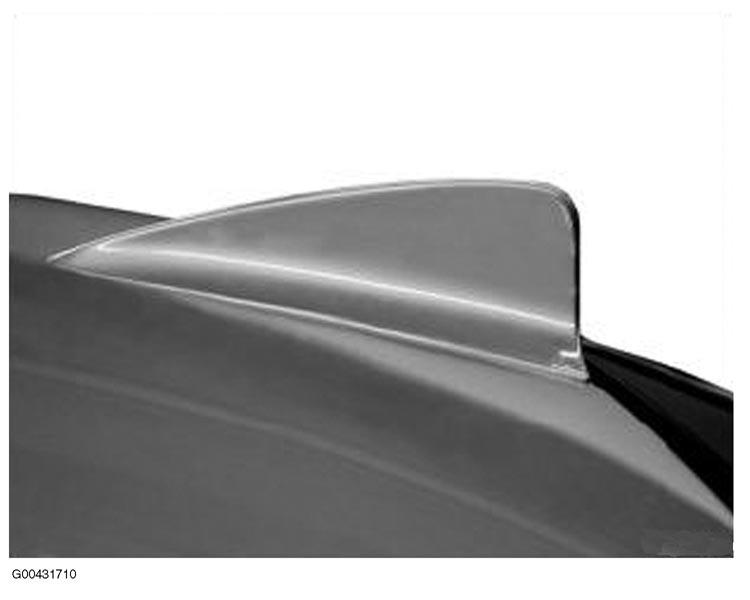

Fig 2: Locating E60, E61, E90 GSM Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Construction

> E60, E61, E90: The technology of the external aerial is explained below.

The aerial consists of the following individual aerials:

Telephone aerial 1 (GSM)
Telephone aerial 2 (GSM)
A GPS aerial for navigation systems (GPS: Global Positioning System).

Both telephone aerials are set up for the frequencies 900 and 1800 MHz. The individual aerials are grouped together in a single housing (see illustration below).

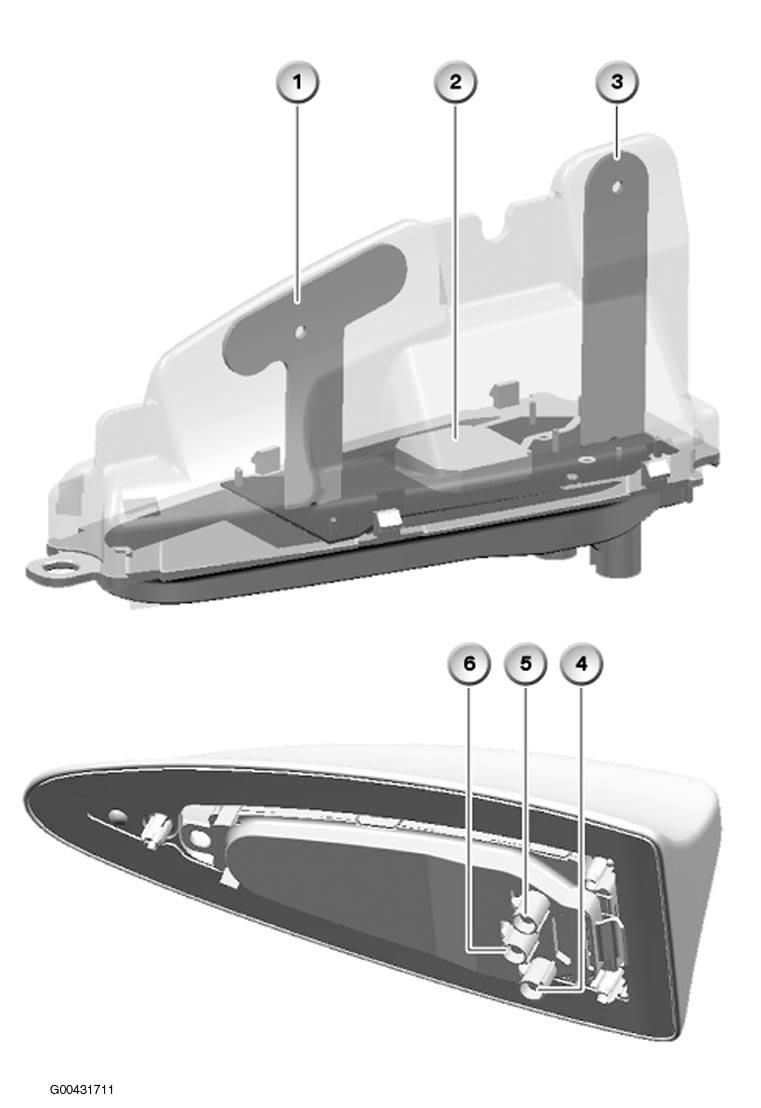

Fig 3: Identifying Telephone Ariels

Courtesy of BMW OF NORTH AMERICA, INC.

TELEPHONE ARIELS LEGEND

Key	Explanation	Key	Explanation
1	Telephone aerial 1	2	GPS aerial for location determination
3	Telephone aerial 2	4	GPS aerial connection
5	Telephone aerial 1 connection	6	Telephone aerial 2 connection
