51 47... Removing and installing/replacing rear left or right underbody paneling

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Secure rear stowage lip (3) and rear underbody paneling (4) against falling out.

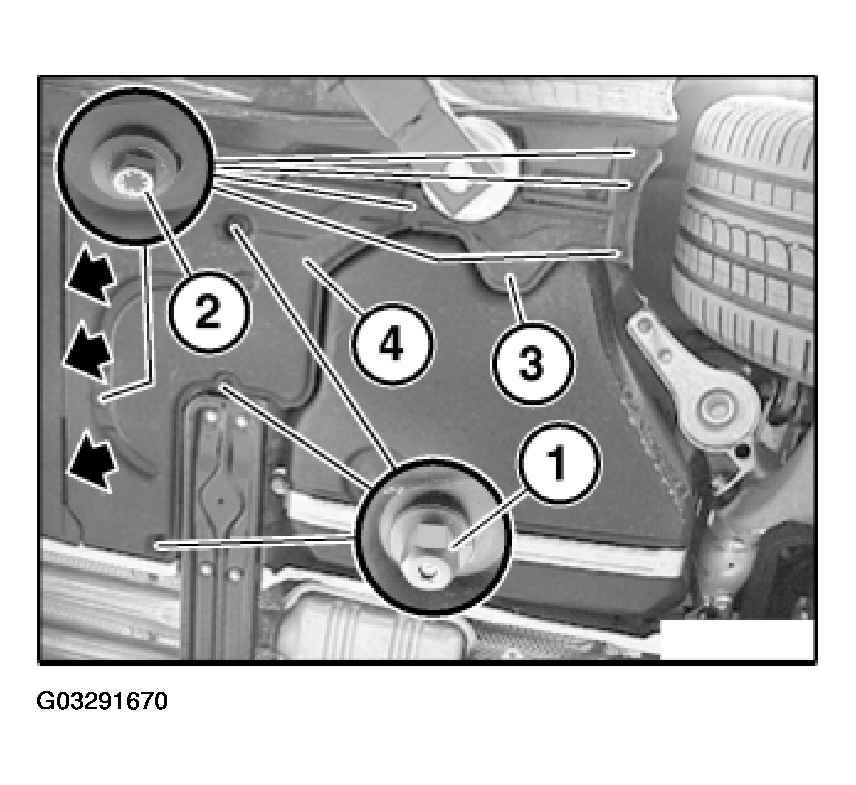

Fig 1: Removing Rear Stowage Lip And Rear Underbody Paneling

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion nuts (1).

Release screws (2).

Remove rear stowage lip (3) and rear underbody paneling (4).

Installation:

Make sure rear underbody paneling (4) is correctly seated in underbody paneling.
