18 00 020 Removing And Installing Complete Exhaust System (N73)

WARNING: This page is about a different car, the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see FRONT AXLE - SPECIAL TOOLS - 3-SERIES (E46) .

Special Tools Required:

31 2 220

WARNING: Scalding hazard! Only perform this work after engine has cooled down.

Support exhaust system with special tool 31 2 220.

NOTE: Weight of exhaust system is approx. 40 kg.

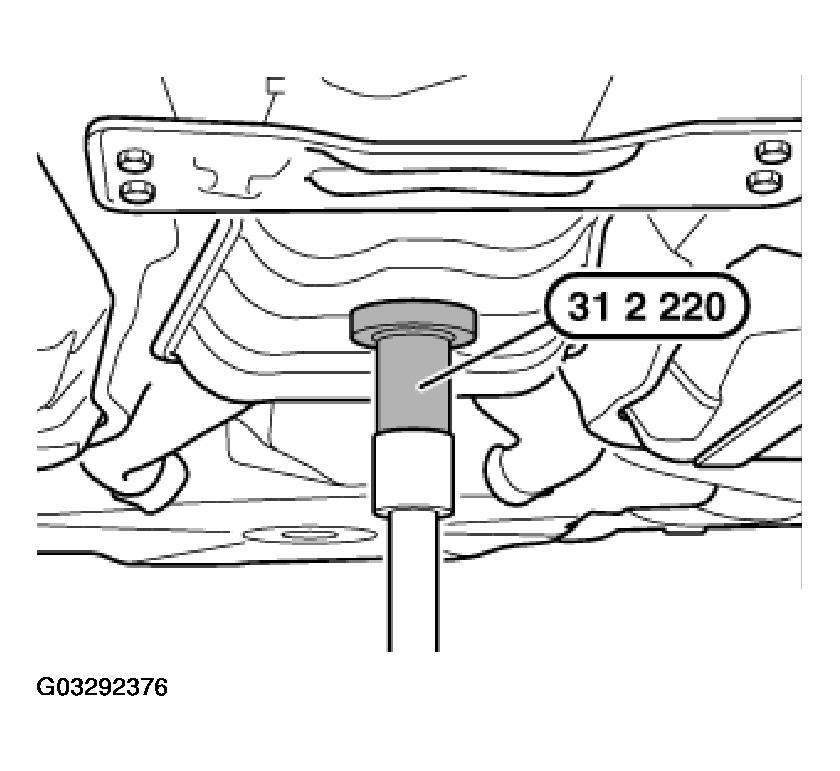

Fig 1: Supporting Exhaust System With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Release flanged nuts on both exhaust manifolds with integrated catalytic converter.

Installation:

Replace self-locking nuts.

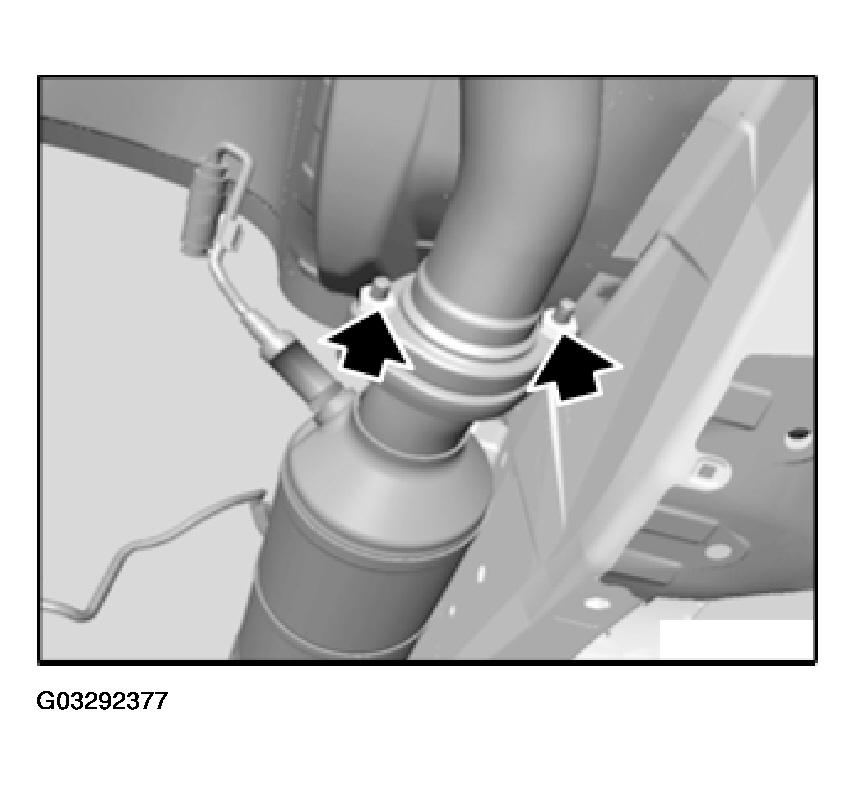

Fig 2: Locating Exhaust Manifold Flanged Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts on transmission.

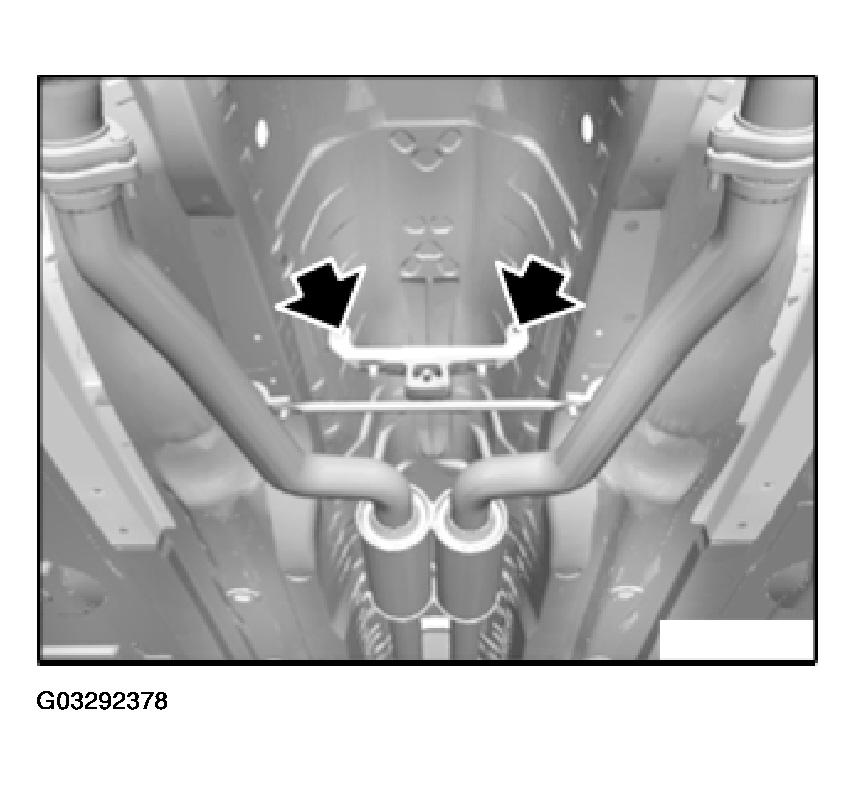

Fig 3: Identifying Transmission Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Remove reinforcement plate.

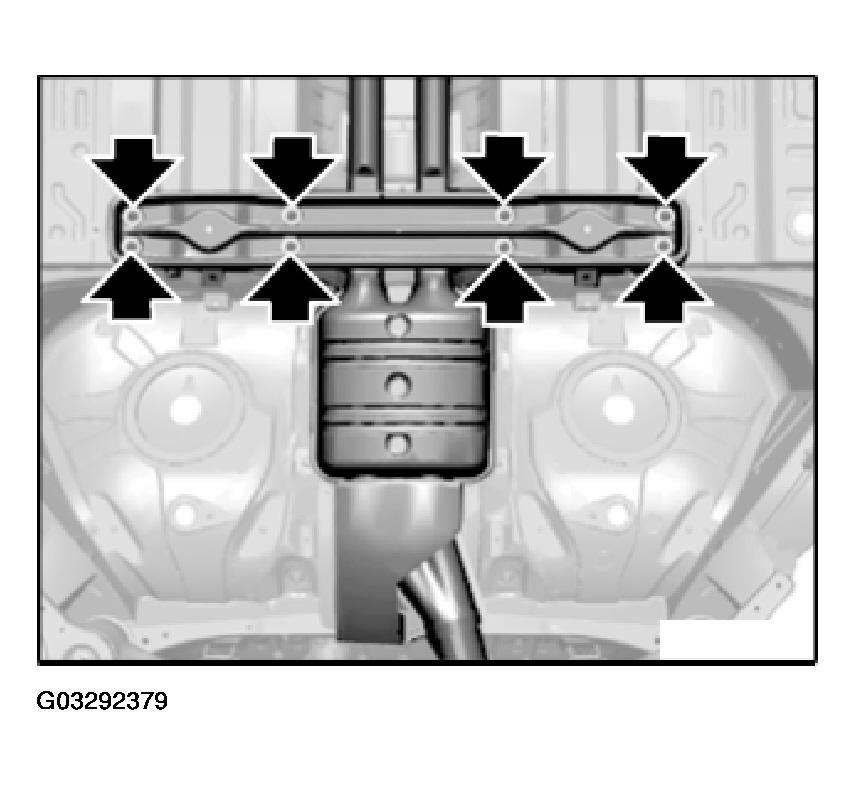

Fig 4: Removing Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Danger of injury! Removal of the exhaust system must be carried out with the assistance of a second person.

NOTE: Weight of exhaust system is approx. 40 kg.

Release nut.

Detach rubber element from holder.

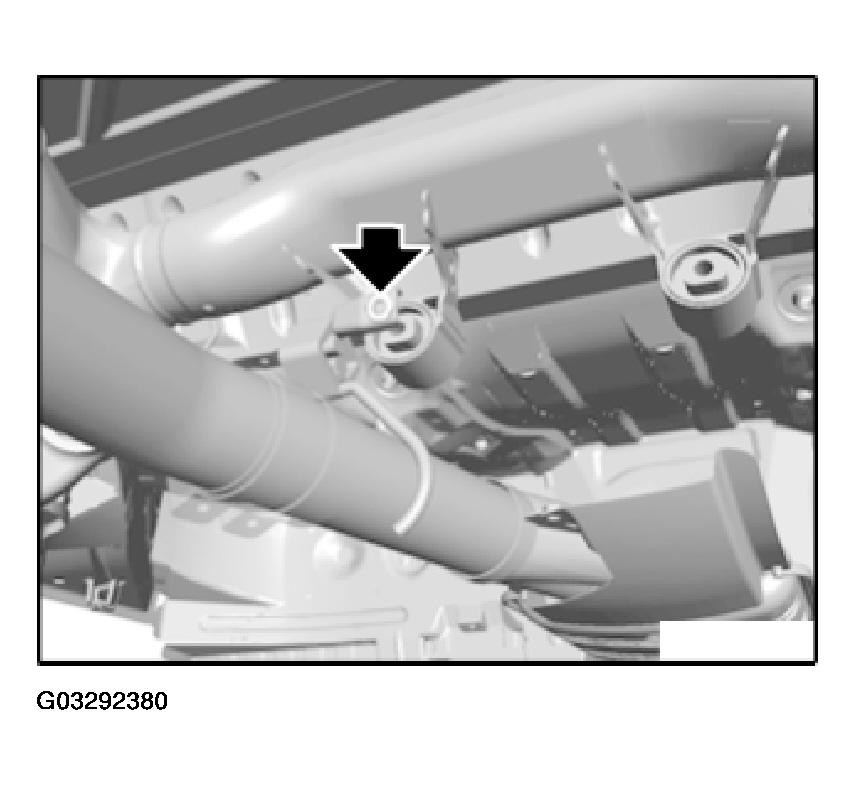

Fig 5: Locating Rubber Element Retaining Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut.

Remove holder of rear muffler.

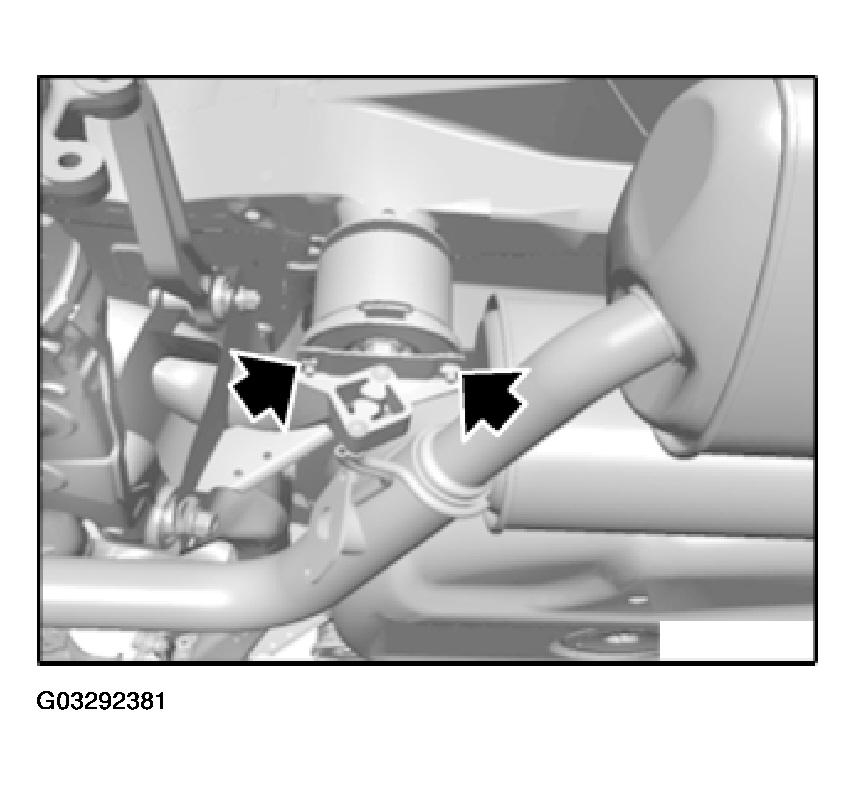

Fig 6: Identifying Rear Muffler Holder Retaining Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

Remove bracket on exhaust tailpipe.

Detach hose from vacuum unit.

Lower exhaust system carefully.

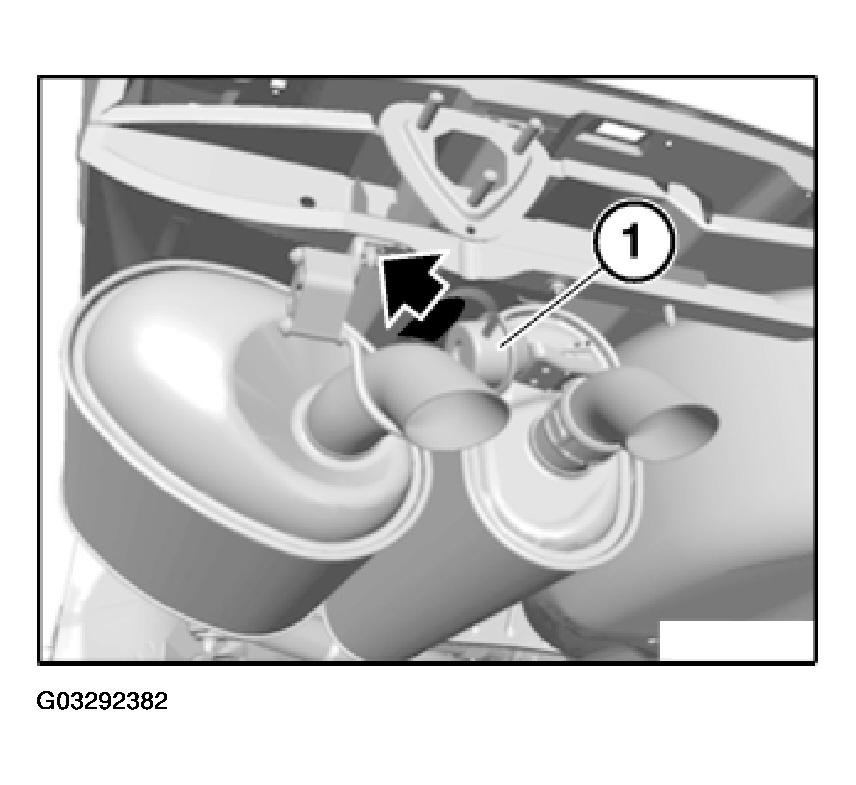

Fig 7: View Of Bracket On Exhaust Tailpipe

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble exhaust system.

Installation:

Check exhaust system for leaks.
