11 78 540 Replacing Left Lambda Oxygen Monitor Sensor (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS .

Special Tools Required:

11 7 030

Cylinders 7 to 12.

Necessary Preliminary Tasks:

Read out DME fault memory.
Remove automatic transmission underbody protection.

WARNING: Scalding hazard! Only perform these tasks after the exhaust system has cooled down.

Unlock and detach plug connection (1).

Release oxygen monitor sensor (2) with special tool 11 7 030.

Installation:

Pay attention to cable routing of Lambda control sensor.

Fig 1: Detaching Plug Connections (Left)

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down oxygen monitor sensor (2) with special tool 11 7 030.

Tightening torque, refer to 11 78 1AZ in ENGINE - TIGHTENING TORQUES .

Installation:

If an oxygen monitor sensor is reused, apply a thin and even coat of Never Seez compound to the thread only.

The part of the oxygen monitor sensor which projects into the exhaust system branch (sensor ceramic) must not be cleaned or come into contact with lubricant.

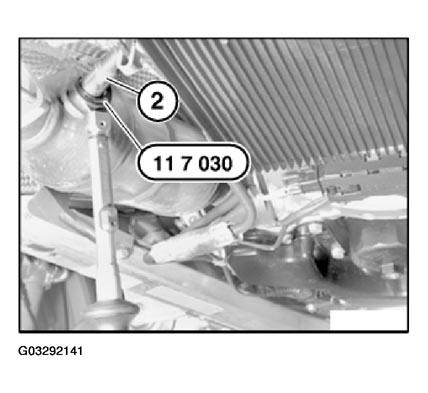

Fig 2: Tightening Oxygen Monitor Sensor With Special Tool (Left)

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of DME.
