17 11 035 Removing And Installing/Replacing Fan Cowl With Electric Fan (N62, N62TU)

WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition
Remove RADIATOR COVER

Unlock plug (1) on AUC sensor and disconnect.

Unlock connector (2) and remove.

NOTE:

Modify AUC sensor when replacing fan cowl.

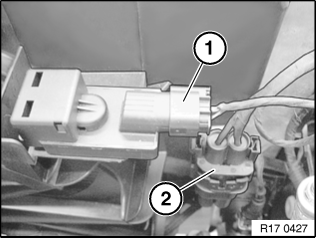

Fig 1: Identifying AUC Sensor Plug And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Raise fan cowl (1) approx. 3 cm.

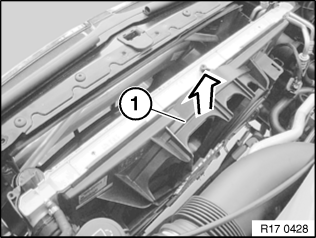

Fig 2: Identifying Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

For purposes of clarity, this work step is shown on the fan cowl after it has been removed.

Fold in left retaining tab (1) in direction of arrow.

Fig 3: Identifying Retaining Tab And Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan cowl (1) in direction of arrow.

Fig 4: Identifying Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Clear DME fault memory.
