61 31 214 Removing and installing / replacing switch for electronic damper control

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Insert two feeler gauges (approx. 0.25) into side of switch, press together the clips, then pull switch forward.

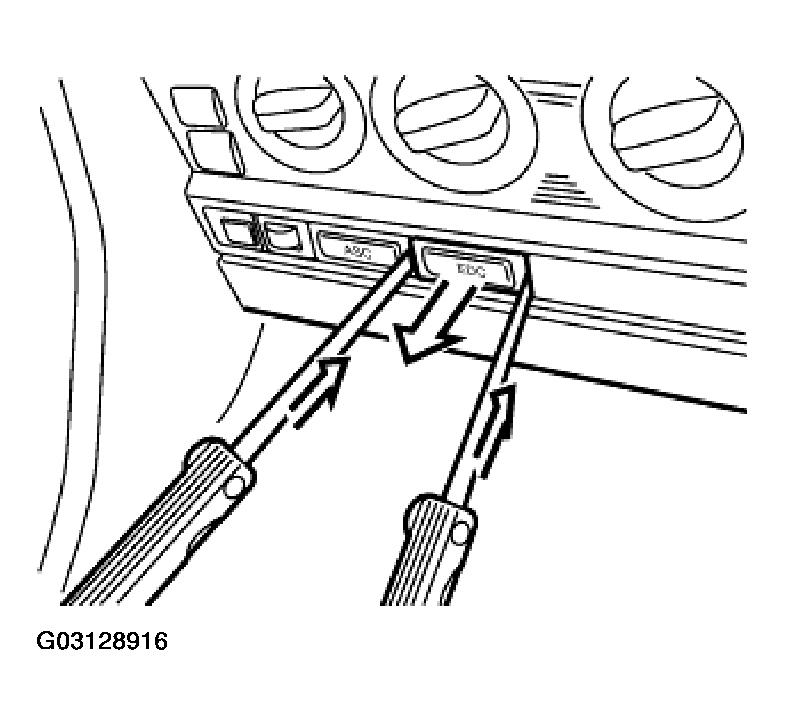

Fig 1: Inserting Two Feeler Gauges (Approx. 0.25) Into Side Of Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Press together clips and remove connector.

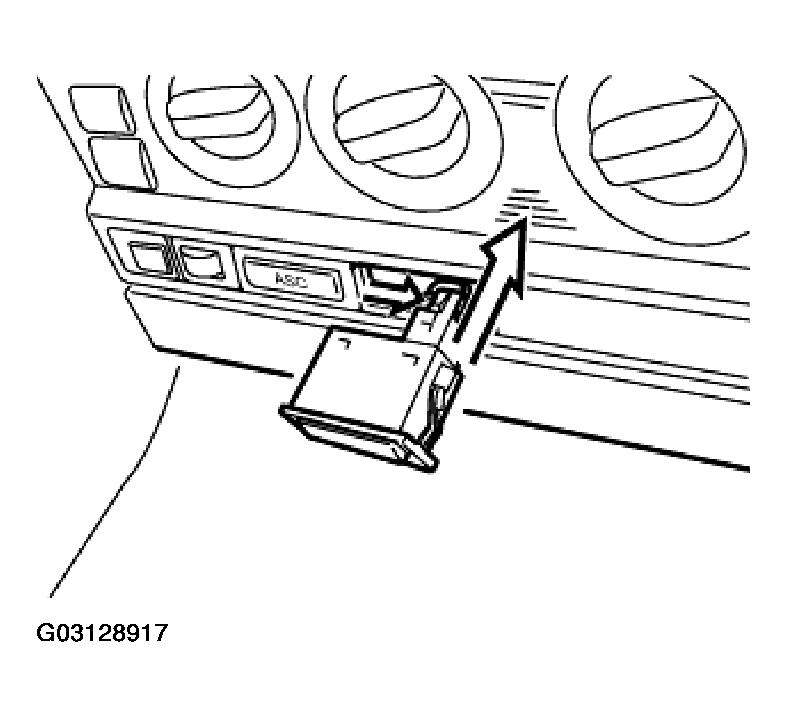

Fig 2: Removing Connector

Courtesy of BMW OF NORTH AMERICA, INC.
