61 31 005 Removing and installing/replacing fixture for steering column stalk

Necessary preliminary tasks:

• Remove steering wheel. See STEERING WHEEL
• Remove lower section of steering column trim. See STEERING COLUMN LOWER TRIM SECTION
• Remove top section of steering column casing. See STEERING COLUMN UPPER TRIM SECTION

If necessary, disconnect plug connection (1) at mount for steering column stalk.

If necessary, disconnect plug connection (2) at stalk for steering column adjustment.

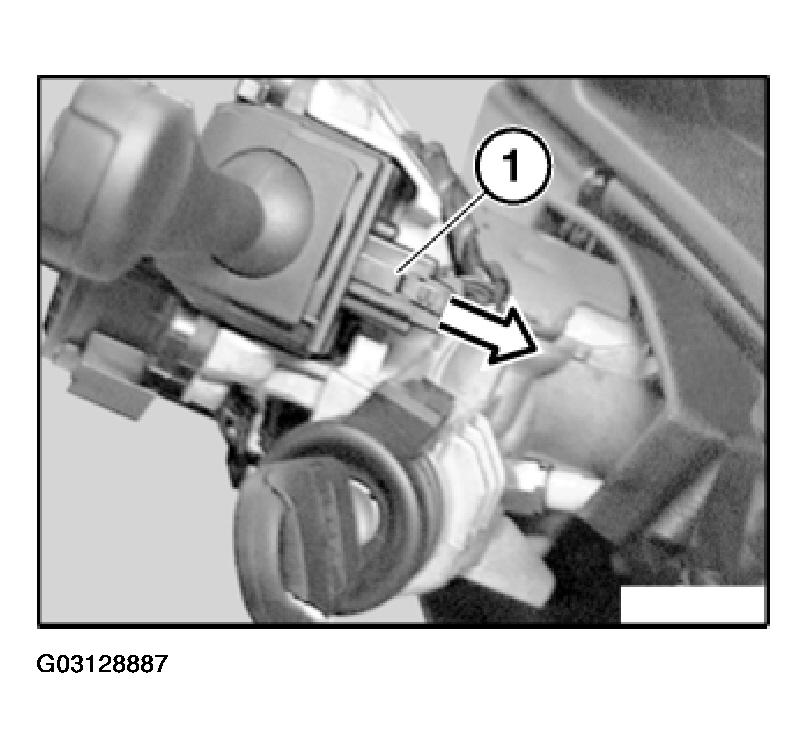

Fig 1: Disconnecting Plug Connection At Mount For Steering Column Stalk

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on wiper switch.

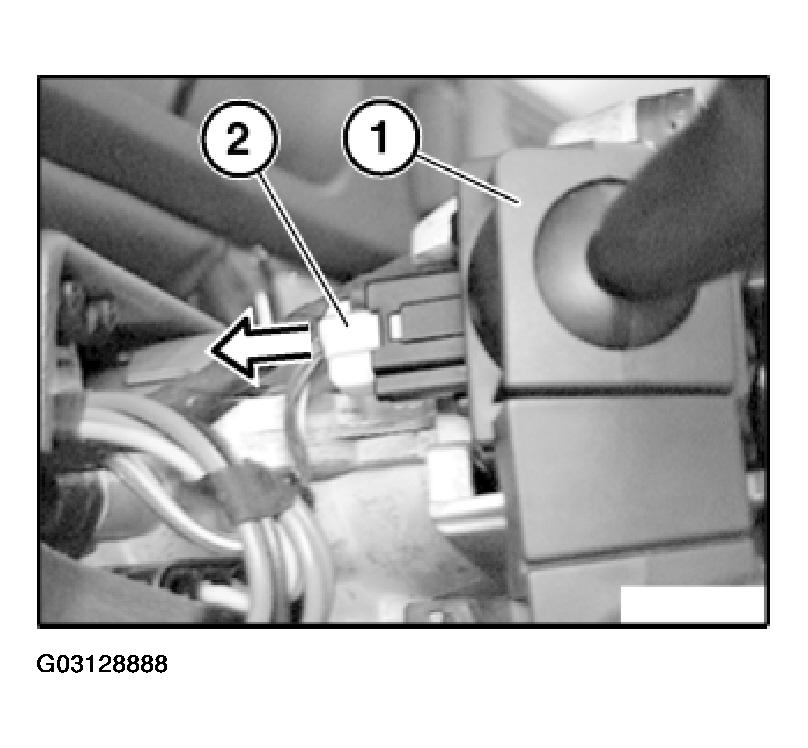

Fig 2: Disconnecting Plug Connection On Wiper Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2) on turn indicator/dipping switch (1).

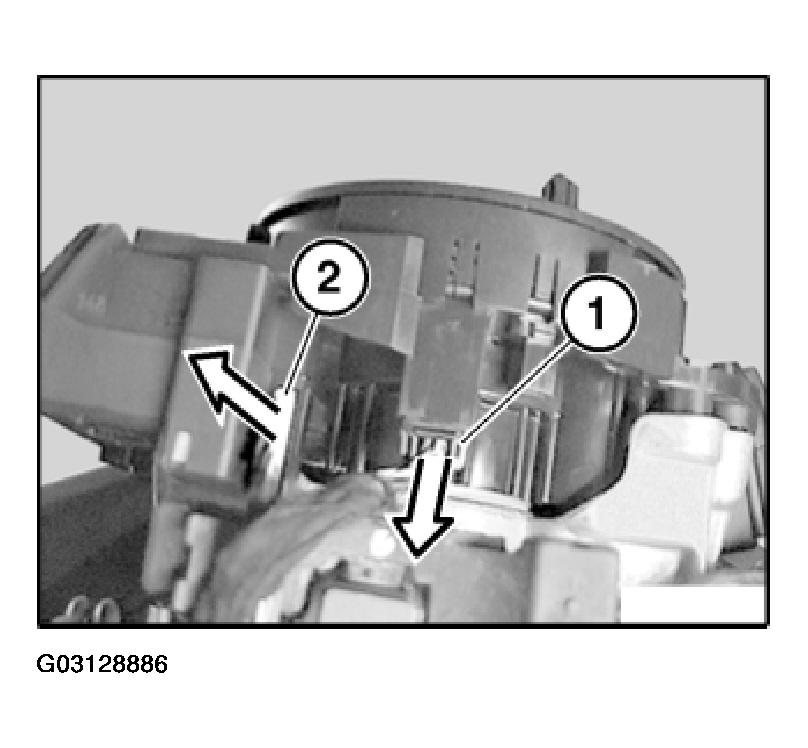

Fig 3: Disconnecting Plug Connection On Turn Indicator/Dipping Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove fixture for steering column stalk (2).

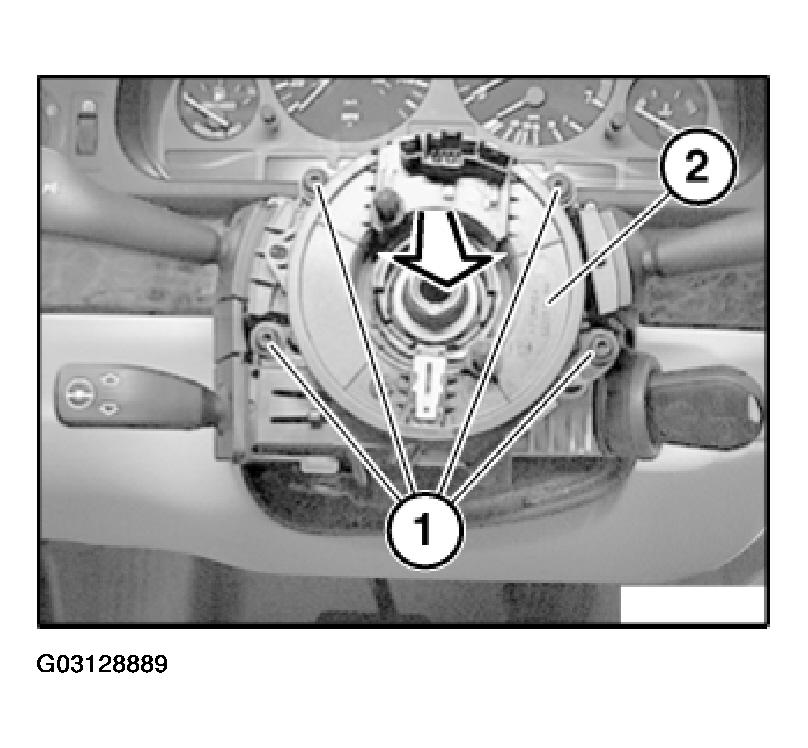

Fig 4: Removing Fixture For Steering Column Stalk

Courtesy of BMW OF NORTH AMERICA, INC.

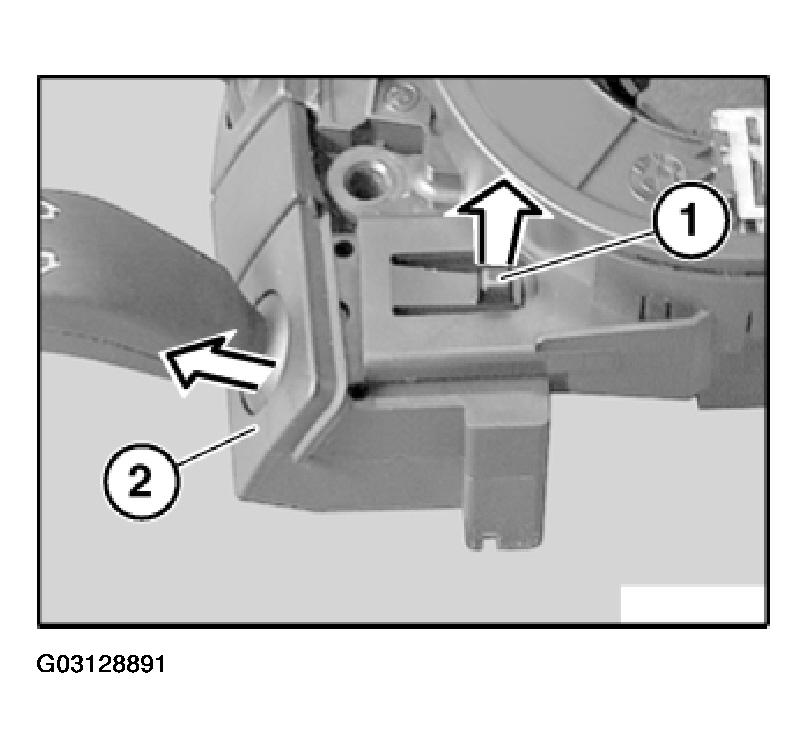

Unlock retainers (1) and pull out switch for windshield wipers (2) towards top.

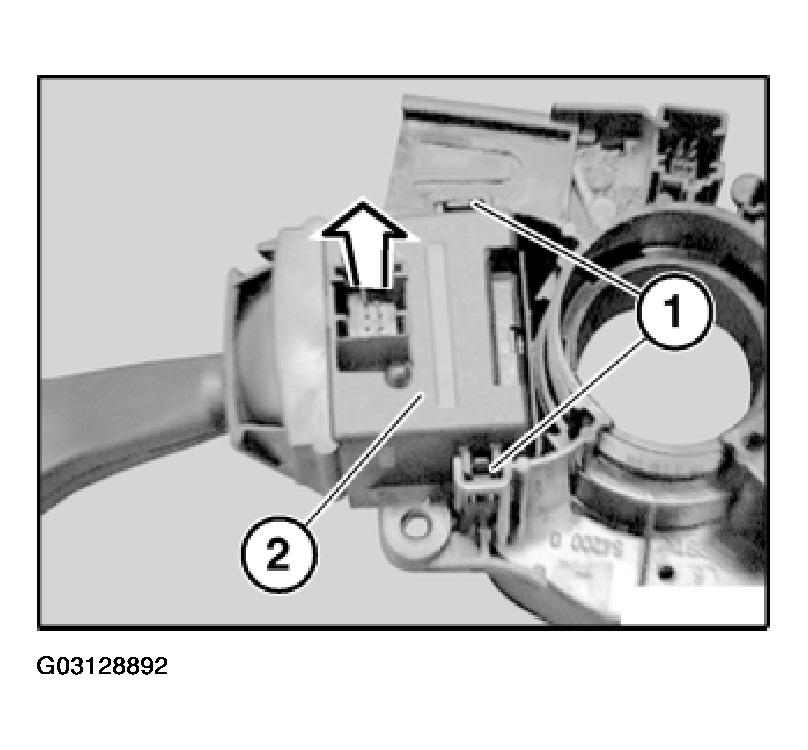

Fig 5: Pulling Out Switch For Windshield Wipers Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove switch for steering column adjustment.

Raise lock (1) in direction of arrow and slide stalk for steering column adjustment (2) in direction of arrow.

Fig 6: Sliding Stalk For Steering Column Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retainers (1) and pull outturn indicator/dipping switch (2) towards top.

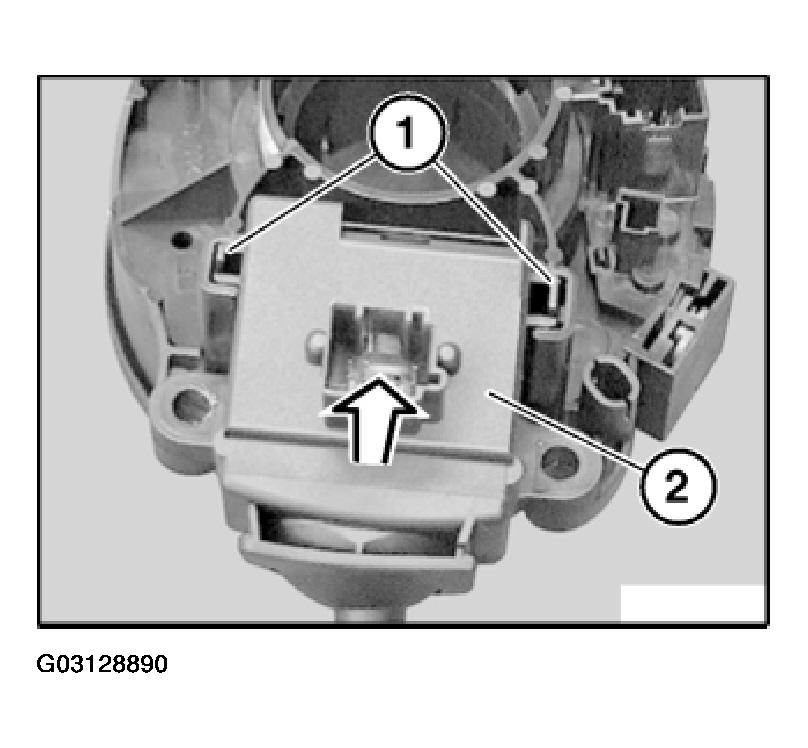

Fig 7: Pulling Outturn Indicator/Dipping Switch Towards Top
