51 00.. Overview of rear door

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

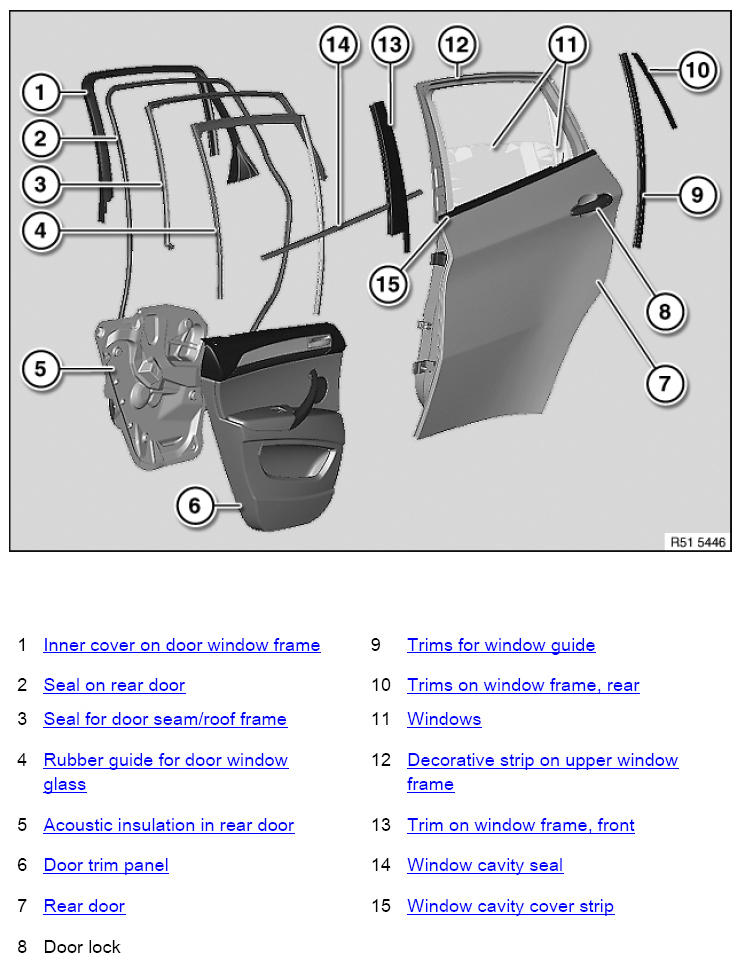

Fig 1: Overview Of Rear Door
G08573021Courtesy of BMW OF NORTH AMERICA, INC.
