51 16... Removing and installing/replacing upper trim on rear console

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SEATS

Release screws (1) under rubber insert.

Release screws (2 and 3) on left and right sides.

Disconnect plug connection (4).

Lift out center console (5).

Fig 1: Identifying Center Console, Plug Connection And Mounting Screws

G06212474

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Feed cup holder from below out of frame (2) in direction of arrow first at point A, then at point B.

Fig 2: Identifying Frame And Mounting Screws

G06212484

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on frame (2).

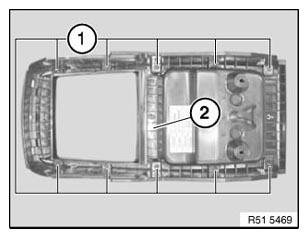

Fig 3: Identifying Rear Console Trim And Mounting Screws

G06212477

Courtesy of BMW OF NORTH AMERICA, INC.

Release trim (2) at retainers (3) from frame (1).

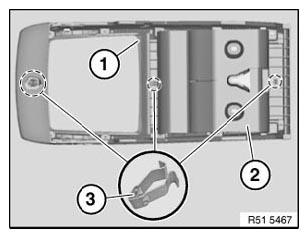

Fig 4: Identifying Rear Console Trim, Frame And Retainers

G06212603

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) on trim (2) must not be damaged.

Make sure retainers (1) is correctly seated on lugs.

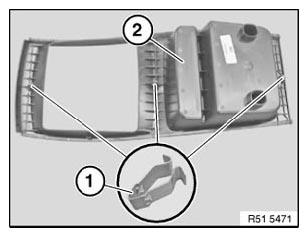

Fig 5: Identifying Rear Console Trim And Retainers

G06212487

Courtesy of BMW OF NORTH AMERICA, INC.
