51 16... Removing and installing/replacing decorative trim on rear console on left/right

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CUP HOLDER IN REAR CONSOLE

Release screws (1).

Feed out trim (2).

Fig 1: Identifying Rear Console Trim And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) on decorative trim (2) must not be damaged.

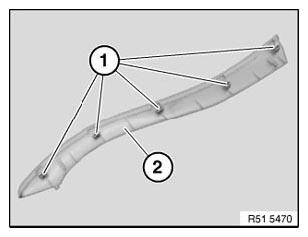

Fig 2: Identifying Decorative Trim And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
