51 14 000 Removing and installing/replacing front BMW badge
WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Risk of damage!

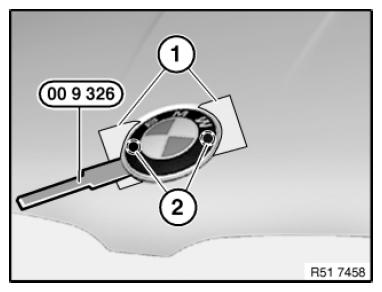

To avoid damaging the paintwork on the engine hood/bonnet, tape off edge areas (1) to sides of guide pins.
So as not to subject the BMW badge to excessive deformation, lever out the badge with special tool 00 9 325 at guide pins (2).
Installation:
The following parts must not be damaged or missing, replace if necessary:
- Badge
- Guide pins
- Grommets
- Adhesive tape
