61 12 062 Replacing wiring harness for front bumper
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on HANDLING WIRING HARNESSES
and cables.
Necessary preliminary tasks:
- Remove FRONT BUMPER TRIM .
NOTE:
Work is shown on the E70 by way of example. There may be differences in detail in the case of other vehicle models.

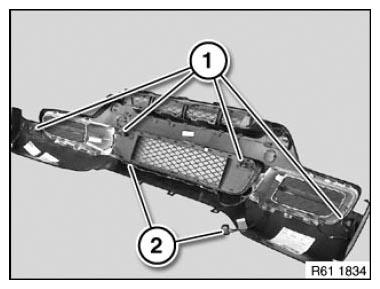

Disconnect plug connections for ultrasonic transducer (1).
Unclip or feed out wiring harness for front bumper (2) from bumper trim and remove.
