Determination of the engine roughness correction value (%DMDFON, see )

The adaptation during firing operation (fuel-on adaptation) compares the calculated engine roughness luts  of the individual cylinders and learns systematic deviations. These are stored in a speed- and load dependent map.

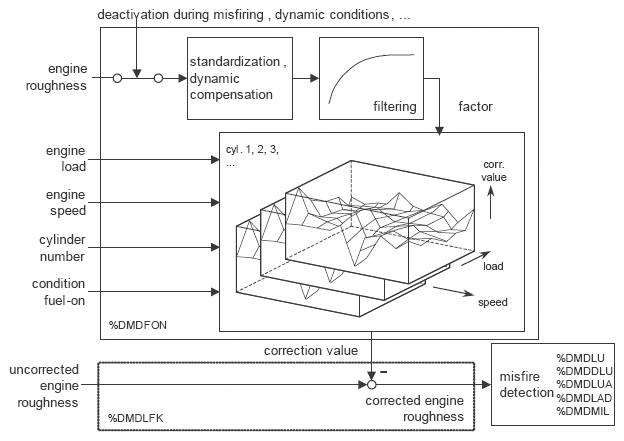

Fig 1: Fuel-On Adaptation - %DMDFON
G05357351Courtesy of BMW OF NORTH AMERICA, INC.
