Location of the Data Link Connector for following models

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW Z4, 2008 BMW X5, 2008 BMW X3, 2008 BMW 528xi, and 2008 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.

X3 3.0i, X3 3.0Si

Fig 1: Position DLC For X3 Models And Closed Cover
G05357416Courtesy of BMW OF NORTH AMERICA, INC.

The DLC is located at the lower left A-pillar and under a cover. This cover has the letters OBD on it.



323i (only Canada), 328i, 328xi, 328Ci, 328Cix, 328i sport wagon 328xi sport wagon, 328Ci conv, 128i, 128i Conv.

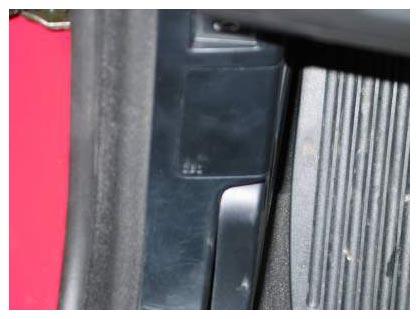

Fig 1: Position DLC For 3 Series Models And Closed Cover
G05357417Courtesy of BMW OF NORTH AMERICA, INC.

The DLC is located at the lower left A-pillar and under a cover. This cover has the letters OBD on it.



528i, 528xi

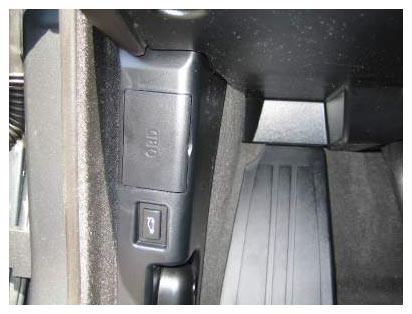

Fig 1: Position DLC For 5 Series Models And Closed Cover
G05357418Courtesy of BMW OF NORTH AMERICA, INC.

The DLC is located at the lower left A-pillar and under a cover. This cover has the letters OBD on it.



Z4 3.0i, Z4 3.0si, Z4 3.0si Coupe

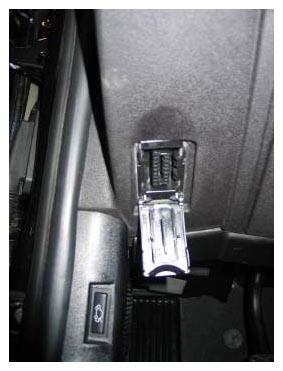

Fig 1: Position DLC For Z4 Models And Opened Cover
G05357419Courtesy of BMW OF NORTH AMERICA, INC.

The DLC is located at the left bottom of the instrument panel and under a cover. This cover has the letters OBD on it and includes also an electrical function (resistance).
