Diagnosis Frequency and MIL illumination

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW Z4, 2008 BMW X5, 2008 BMW X3, 2008 BMW 528xi, and 2008 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.

Diagnosis Frequency and MIL illumination - no refueling detected, leak > 0.04 inches

Fig 1: Diagnosis Frequency And MIL Illumination - No Refueling Detected
G05357397Courtesy of BMW OF NORTH AMERICA, INC.

Diagnosis Frequency and MIL illumination - after refueling detected, leak > 0.02 inches

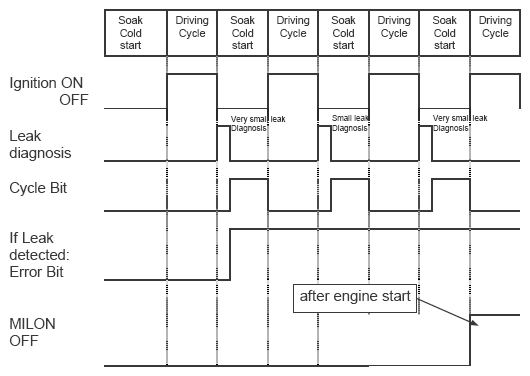

Fig 2: Diagnosis Frequency And MIL Illumination - After Refueling Detected
G05357398Courtesy of BMW OF NORTH AMERICA, INC.
