Drawing and Location of the Malfunction Indicator Light for following models

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW Z4, 2008 BMW X5, 2008 BMW X3, 2008 BMW 528xi, and 2008 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.

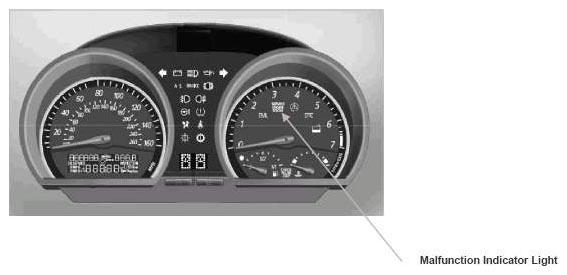

X3 3.0i, X3 3.0Si, Z4 3.0i, Z4 3.0si, Z4 3.0si Coupe

Fig 1: Identifying Malfunction Indicator Light
G05357420Courtesy of BMW OF NORTH AMERICA, INC.

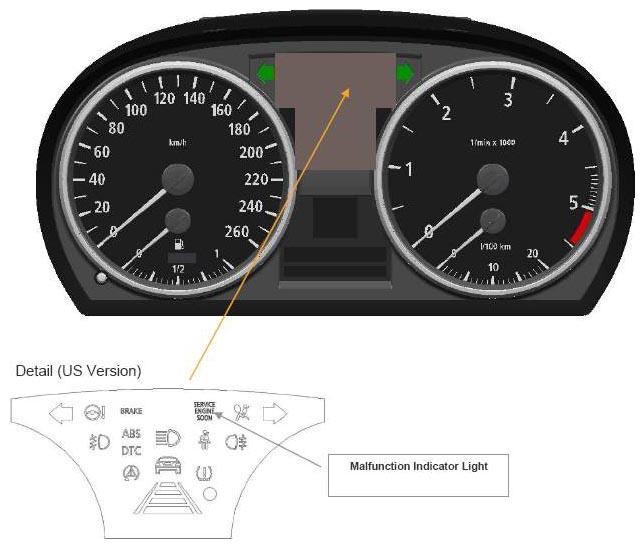

323i (only Canada), 328i, 328xi, 328i sport wagon, 328xi sport wagon, 328Ci, 328Cix, 328Ci conv., 128i, 128i Conv.

Complete Instrument panel (European Version)

Fig 1: Overview Of Complete Instrument Panel
G05357421Courtesy of BMW OF NORTH AMERICA, INC.

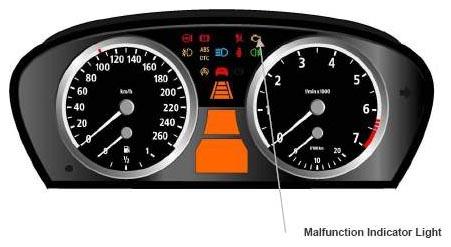

528i, 528xi

Fig 1: Identifying Malfunction Indicator Light
G05357422Courtesy of BMW OF NORTH AMERICA, INC.
