Idle Speed Control - General Description
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW Z4, 2008 BMW X5, 2008 BMW X3, 2008 BMW 528xi, and 2008 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.
This diagnosis monitors the stability of the idle speed. If the actual idle speed is not within a calibratible range, above or below the idle speed set-point then the failure criteria is fulfilled. The appropriate DTC will be stored.

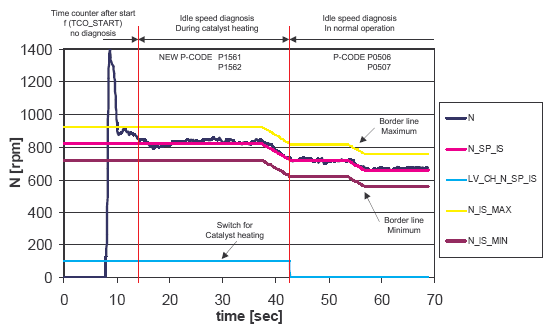

Illustration Idle speed control
EMS PARAMETER WITH DESCRIPTION
| EMS Parameter | Description |
|---|---|
| N | Engine speed |
| N_SP_IS | Idle speed setpoint |
| LV_CH_N_SP_IS | catalyst heating by increased idle speed |
| N_IS_MAX | Maximum idle speed |
| N_IS_MIN | Minimum idle speed |
