31 2 300 Extractor

Minimum set: Mechanical tools

Note: For pressing steering tie rod off wheel carrier.

Series: E60, E61, E83, E90, E91, E92

Storage location: C48

SI number: 1 24 03 (040)

Order number: 31 2 300

Extractor

Consisting of:

1 = 31 2 301 Pressure bolt

2 = 31 2 302 Lower section

3 = 31 2 303 Upper section

4 = 31 2 304 Spindle and dowel pin

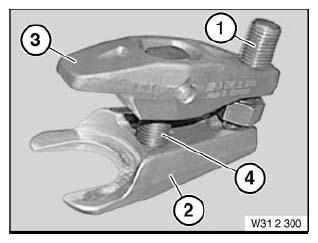

Fig 1: Extractor (31 2 300) Components And Assembly

Courtesy of BMW OF NORTH AMERICA, INC.
