64 22 135 Removing and installing / replacing left fresh-air grille

Remove cap (1).

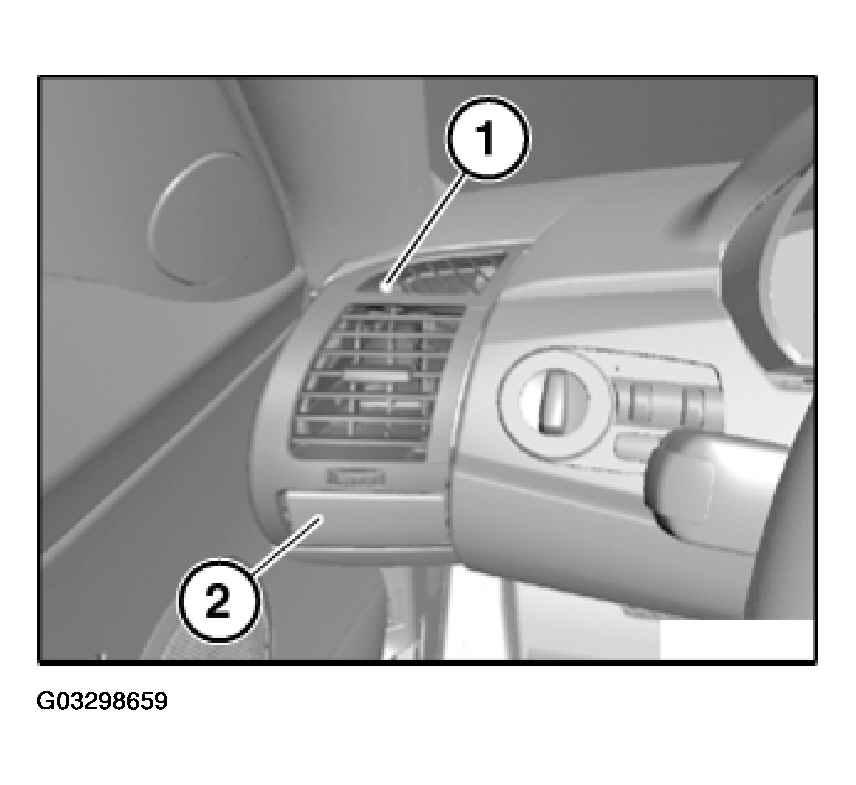

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Without cup holder:

Lever out cover (2) and remove.

With cup holder:

Extend cup holder (2).

All:

Loosen screws (1).

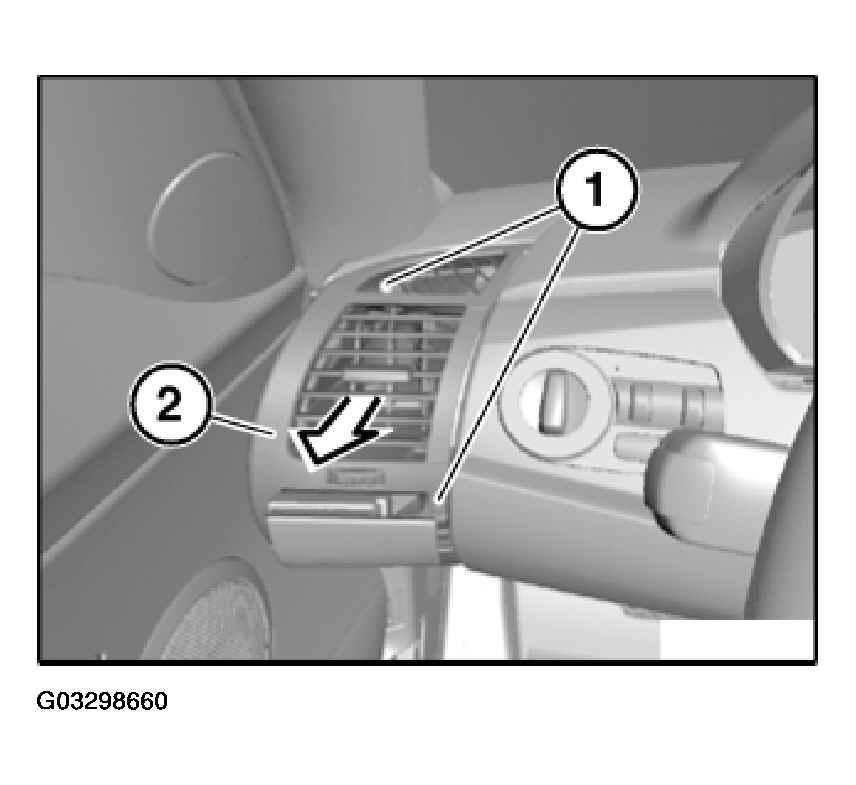

Fig 2: Removing Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw fresh air grill (2) in direction of arrow.

Replacement (with cup holder):

Release screw (1).

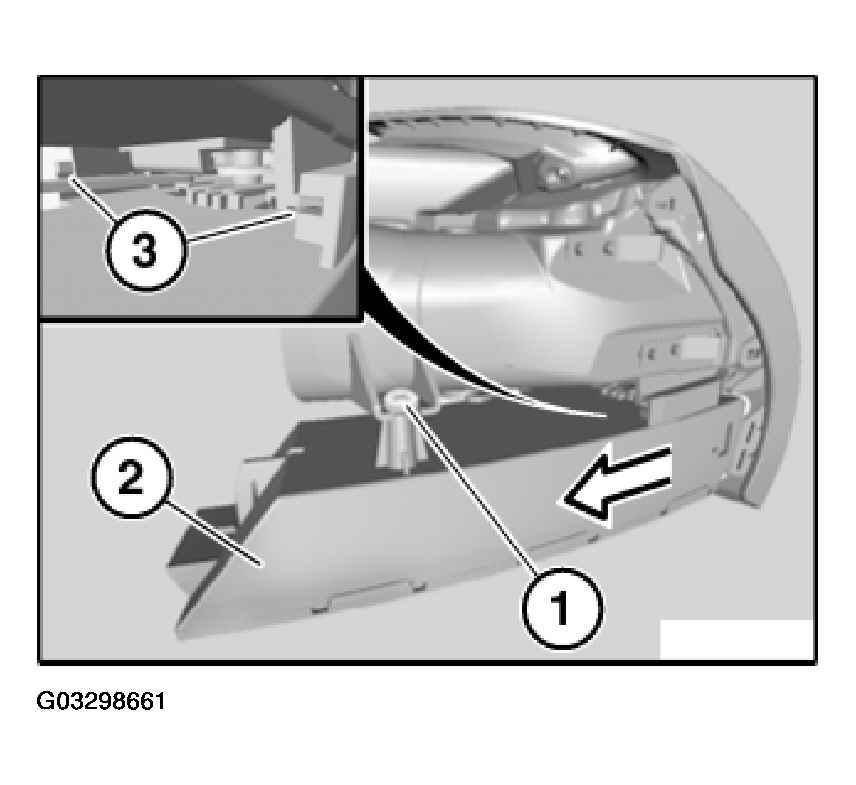

Fig 3: Removing Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cup holder (2) in direction of arrow and feed out.

Installation:

Make sure cup holder (2) is correctly seated in guide (3).
