51 23... Adjusting/replacing bump stops

NOTE: The illustrations are schematic representations and are to be applied to the relevant vehicle type.

Turn lock (1) 45° counterclockwise.

Pull bump stop (2) upwards.

Close lid slowly until it is at the same height as the side panel.

Open lid and turn lock (1) clockwise.

Installation:

Press bump stop into panel and drive in expanding pins (3).

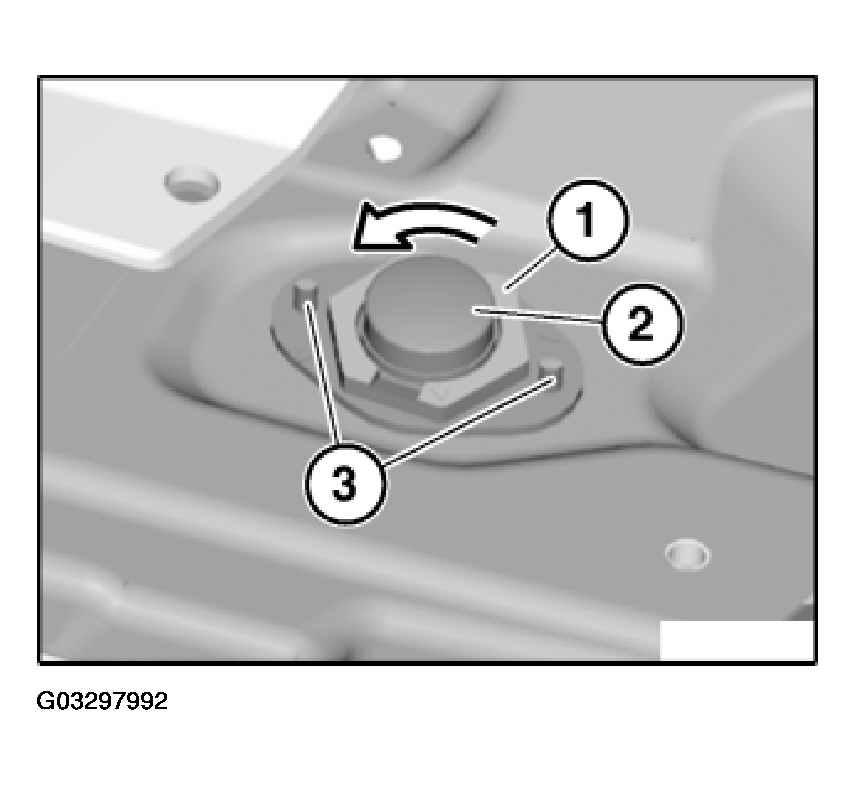

Fig 2: Turning Lock 45° Counterclockwise

Courtesy of BMW OF NORTH AMERICA, INC.
