51 14 008 Replacing (removing and installing) number/letter combination on front left or right side panel
IMPORTANT:
The Instructions For Number/Letter Combination Cementing serve as the basis for these repair instructions and must be followed without fail.
NOTE:
Procedure and dimensions are also mandatory for right side, outer edge of number is then positioned.

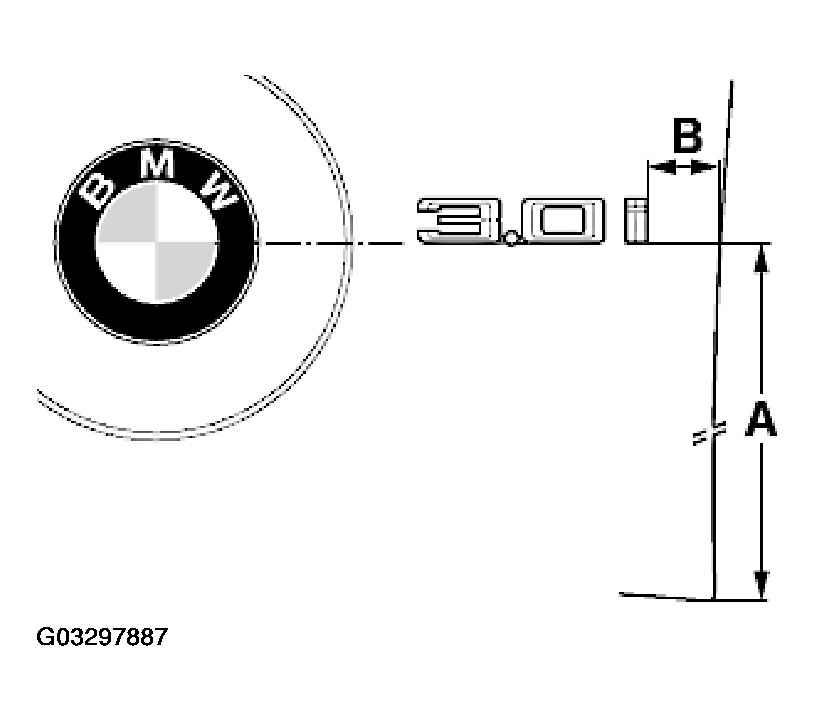

Calculate distance "A" from corner of side panel upwards.
Apply adhesive tape from center point of BMW emblem to distance "A".
Apply distance "B" with a second adhesive tape to first adhesive tape.
Remove liner (protective strip for adhesive surface).
Position number/letter combination against both adhesive tapes and press down firmly.
Remove carrier film.
Dimension in mm:
A= 318
B = 28
