51 11 ... Overview of front bumper (from 09/2006)

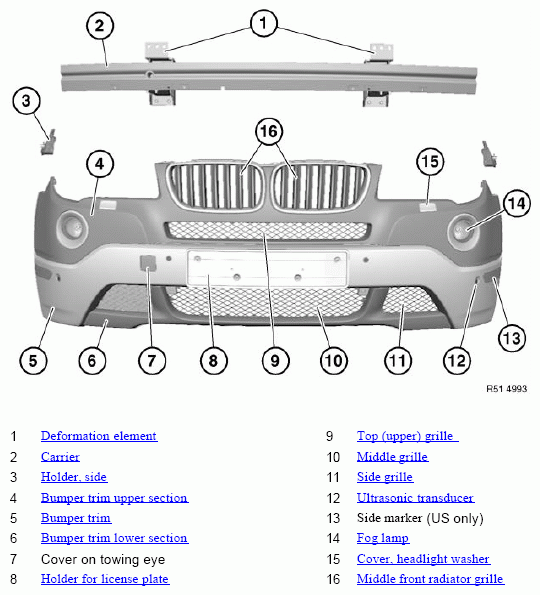

Fig 1: Front Bumper (From 09/2006) Components
G04788311Courtesy of BMW OF NORTH AMERICA, INC.
