51 45 .. Overview of instrument panel

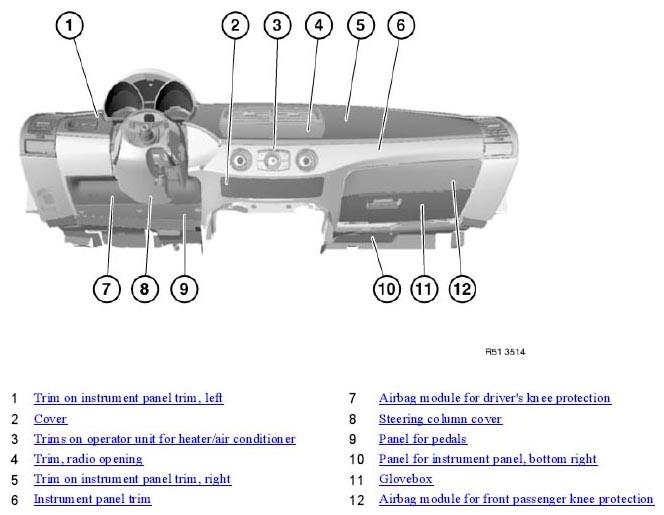

Fig 1: Identifying Instrument Panel

G04749871

Courtesy of BMW OF NORTH AMERICA, INC.
