51 12 ... Overview of rear bumper (M Roadster/M Coupe)

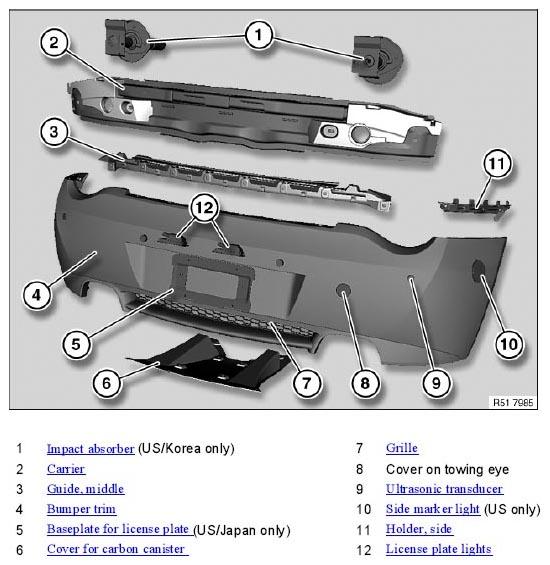

Fig 1: Identifying Rear Bumper Components (M Roadster/M Coupe)

G04749565

Courtesy of BMW OF NORTH AMERICA, INC.
