72 11 041 Removing And Installing/Replacing Front Left Or Right Lower Belt Fitting (Seat Belt Tensioner)

Necessary preliminary tasks:

WARNING:

Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.

Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.

Switch off ignition!

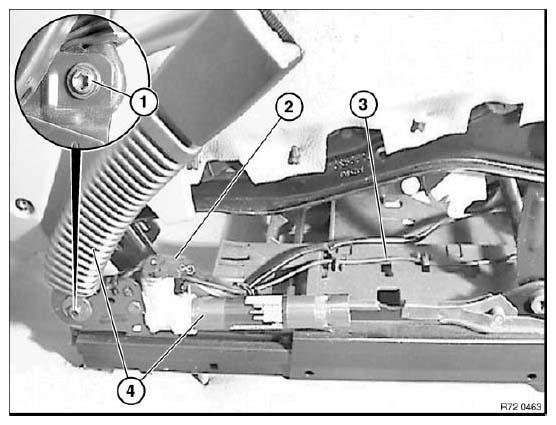

Fig 1: Identifying Lower Strap (Belt Tensioner) And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 72 11 06AZ . See SEAT BELTS for specs.

Disconnect PLUG CONNECTION (2) and plug connection of lead (3).

Remove lower strap (belt tensioner) (4).
