31 11 004 Removing and installing/replacing reinforcement brace
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 335i, 2008 BMW 328i, 2008 BMW 323i, 2007 BMW 335i, and 2007 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe Safety Instructions for raising the vehicle
Driving without the reinforcement brace is not permitted!
Necessary preliminary tasks:
- Remove Front Assembly Underside Protection
- Remove Reinforcement Cover on both sides
Partly detach Underbody Panelling on both sides in area of reinforcement brace

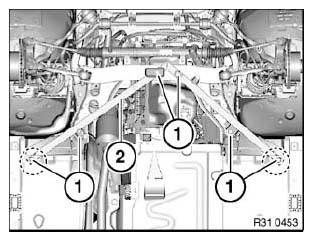

Release screws (1).
Remove reinforcement brace (2).
Installation:
Replace screws and insertion nuts.
For tightening torque refer to 31 10 2AZ in 31 10 FRONT AXLE SUSPENSION .
