41 00... Frame Alignment Control Body Dimensions

Dimensions in mm.

Measurement tolerances:

≤ 1000 mm ± 1.5 mm
≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the straightening attachment.

The specified dimensions/measurements always refer to the centrepoint of the bore/screw.

Under Body View 1

Fig 1: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 1)

G04726771

Courtesy of BMW OF NORTH AMERICA, INC.

Under Body View 2

Fig 2: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 2)

G04726772

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

Fig 3: Engine Compartment Frame Alignment Control Dimensions And Measurement Points (Top View, Front End)

G04726773

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

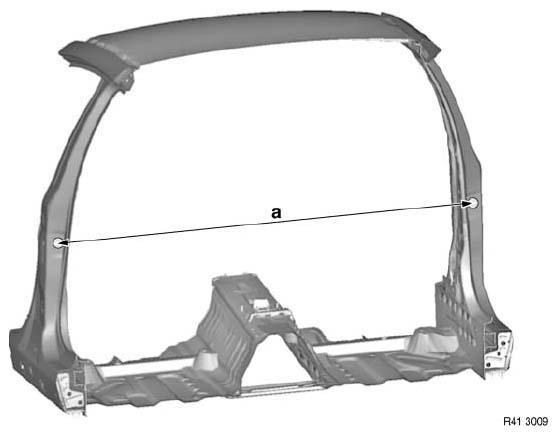

View, B-Pillar (Saloon And Touring Only)

G04726774

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1551 mm between screw-on points of door brakes.

View, B-Pillar (Coupe Only)

G04726775

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1543 mm between screw-on points of lock strikers.
