41 00... Body Gap Dimensions (E91)

Dimensions in mm

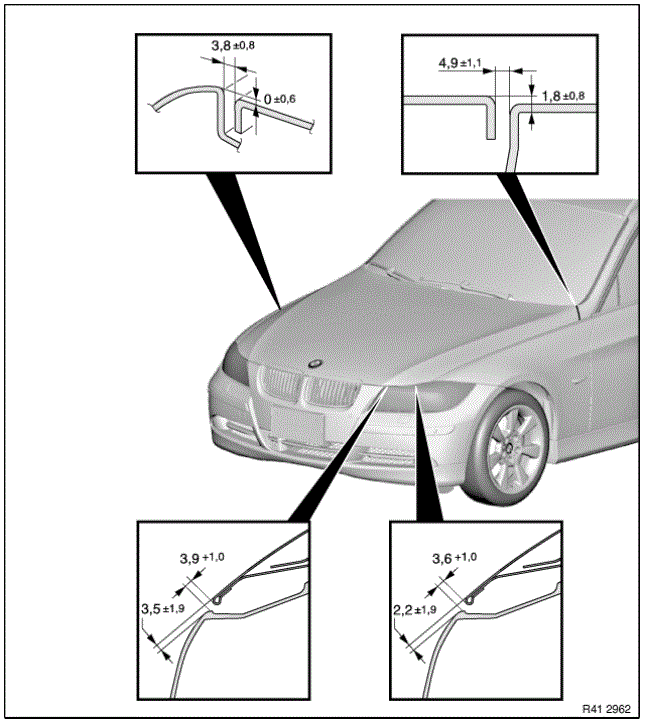

Fig 1: Hood, Headlamp, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points (E91)

Courtesy of BMW OF NORTH AMERICA, INC.

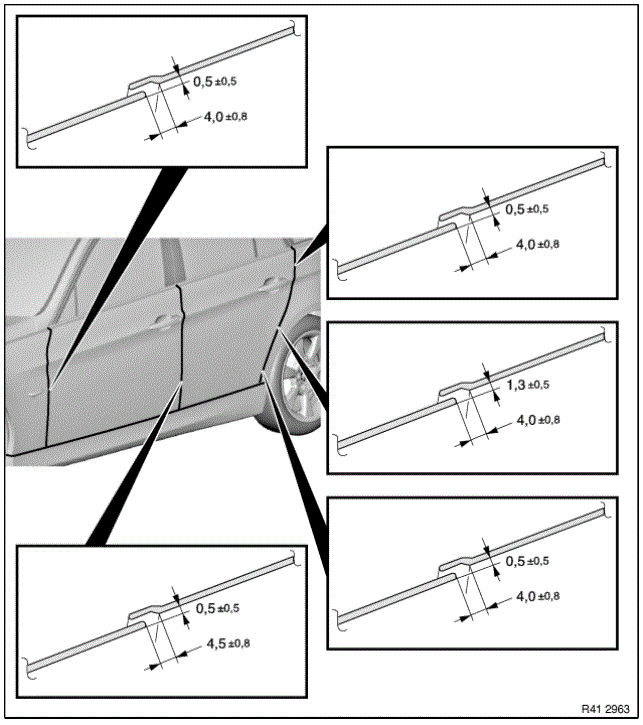

Fig 2: Front Fender, Front Door, Rear Door And Quarter Panel Body Gap Dimensions And Measurement Points (E91)

Courtesy of BMW OF NORTH AMERICA, INC.

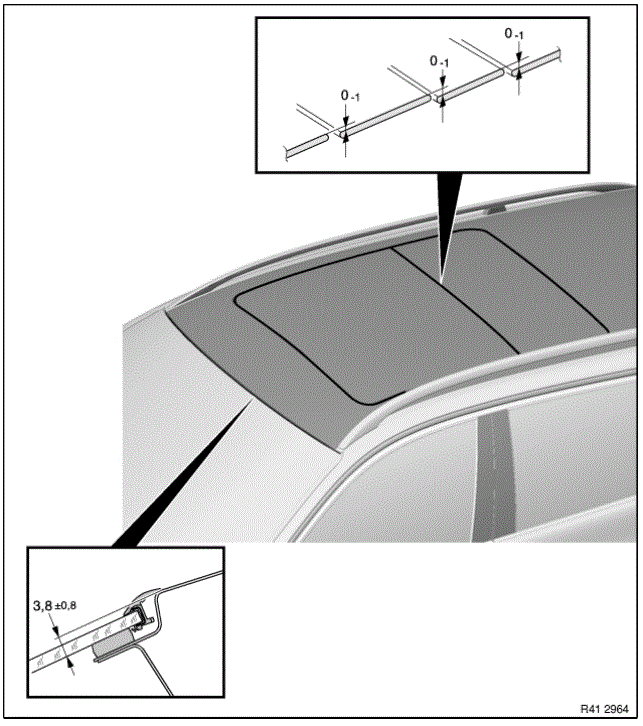

Fig 3: Windshield, Windshield Header Panel And Moonroof Body Gap Dimensions And Measurement Points (E91)

Courtesy of BMW OF NORTH AMERICA, INC.

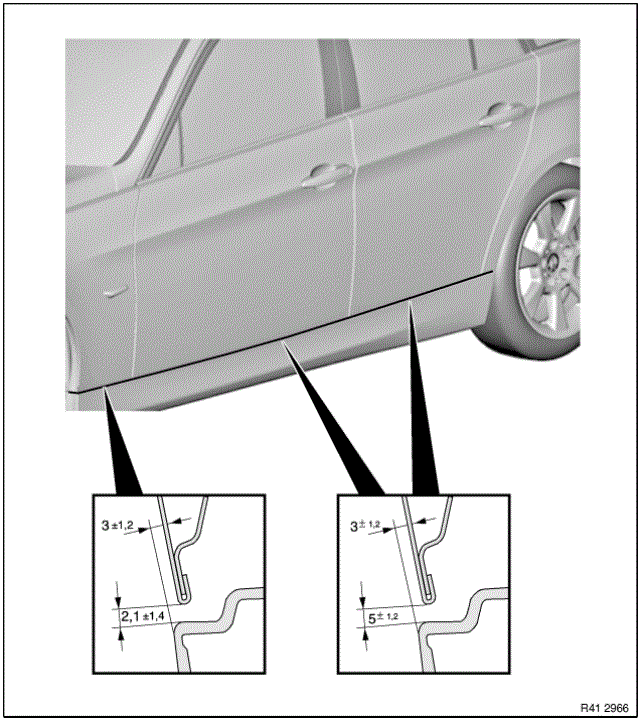

Fig 4: Front Fender, Front Door, Rear Door And Door Sill Panel Body Gap Dimensions And Measurement Points (E91)

Courtesy of BMW OF NORTH AMERICA, INC.

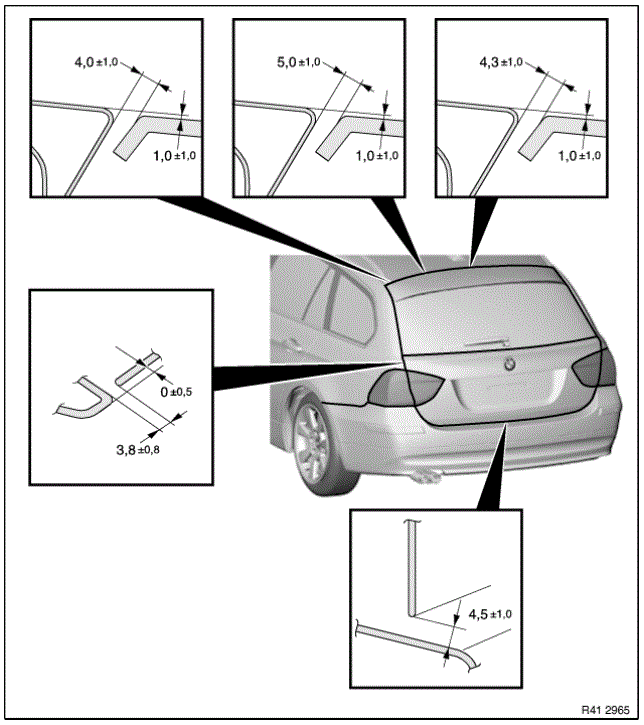

Fig 5: Tailgate, Tailgate Spoiler, Roof, Quarter Panel And Rear Bumper Body Gap Dimensions And Measurement Points (E91)

Courtesy of BMW OF NORTH AMERICA, INC.

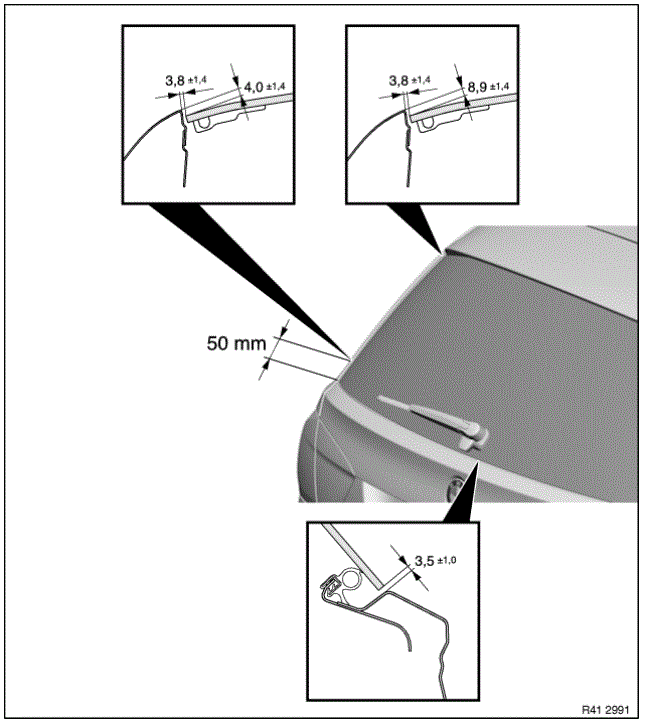

Fig 6: Tailgate And Back Glass Body Gap Dimensions And Measurement Points (E91)

Courtesy of BMW OF NORTH AMERICA, INC.
