Top-HiFi System
The digital 'Top-HiFi' amplifier with Logic7 (Surround Sound) is of identical design to that used in the E60 and the E63/4. This amplifier is a MOST bus node and can be operated only with radios or navigation systems with MOST capabilities.
The audio signals are sent in digital form via the fibre-optic cable (MOST bus) from the radio or navigation systems to the 'Top-HiFi' amplifier. The amplifier converts the digital signals to analogue signals, amplifies them and routes them to the speakers.

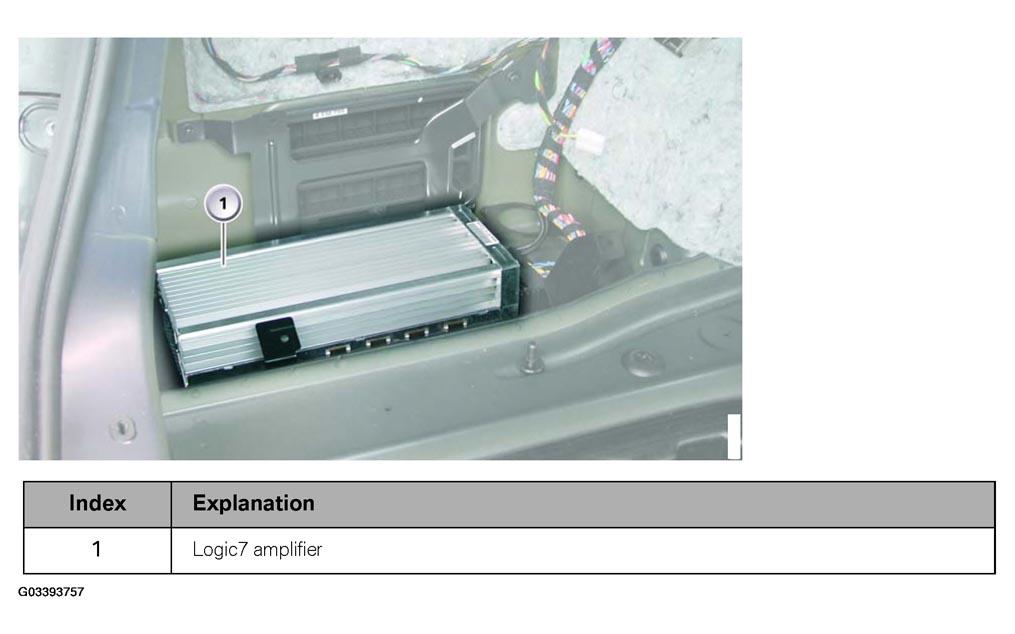

The sound adjustment (7-band equalizer, spatial sound, fader etc.) takes place prior to the analogue conversion in the digital signal processor (DSP) of the amplifier. The Top-HiFi amplifier is installed in the same location as the HiFi amplifier.

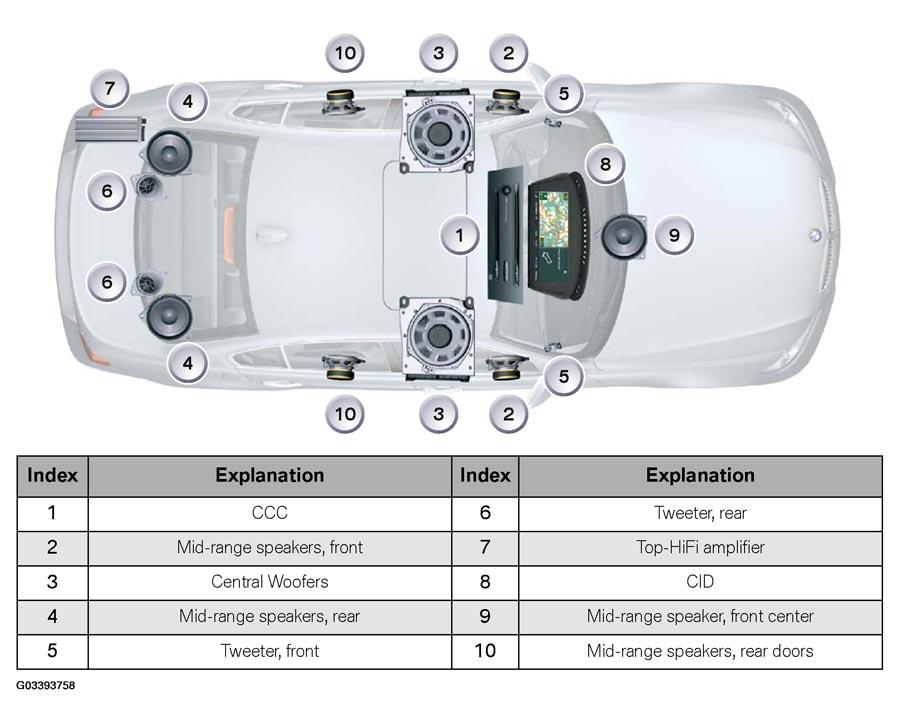

A total of 13 speakers are driven by 9 audio channels:
- A high-range and mid-range speaker in each front door
- A tweeter and a mid-range speaker on each side of the rear shelf
- A mid-range speaker in each rear door
- A mid-range speaker in the dashboard (Surround Sound)
- A central bass speaker under each front seat
