65 20 035 Removing and installing/replacing roof-mounted aerial/antenna

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Release screw (1) and feed out roof aerial/antenna (2) towards top.

Fig 1: Identifying Roof Aerial/Antenna And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) and remove aerial/antenna (2).

Installation:

Do not mix up aerial/antenna connections (1).

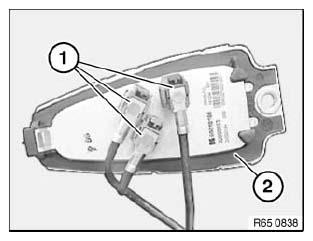

Fig 2: Identifying Plug Connections And Aerial/Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
