65 13 050 Removing and installing/replacing speaker (treble speaker in quarter light mirror)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: For purposes of clarity, cover on door window frame is removed.

Remove foam wedge (1) in direction of arrow from door window frame (2).

Installation:

Fit foam wedge (1) exactly over guide (3).

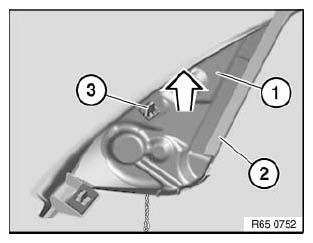

Fig 1: Identifying Foam Wedge, Window Frame And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catches (1) and remove speaker (2) from cover on door window frame (3).

Disconnect plug connection and remove speaker.

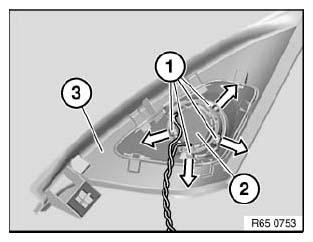

Fig 2: Identifying Catches, Speakers And Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.
