11 22 513 Replacing roller bearing for dualmass flywheel (Using Hydraulic Press)

Special tools required:

• 21 2 051
• 21 2 052

Using hydraulic press (1) and special tool 21 2 051, press out dual-mass flywheel downwards on engine side.

Fig 1: Using Hydraulic Press And Special Tool (21 2 051) To Press Put Duel-Mass Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Push roller bearing (2) onto special tool 21 2 052.

Using hydraulic press (1), press roller bearing into dualmass flywheel as far as it will go on clutch side.

Observe press-in instruction:

• Roller bearing must not be driven in.
• Roller bearing mounting force/travel monitored:

  Min. 2000N  1 mm before end of pressing in.

  Max. 15000N  during entire press-in procedure.

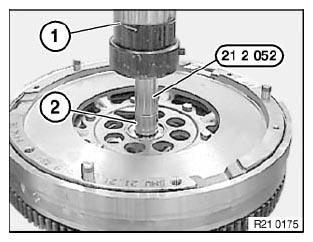

  Fig 2: Using Hydraulic Press And Special Tool (21 2 052) To Press Roller Bearing Into Dual-Mass Flywheel

  Courtesy of BMW OF NORTH AMERICA, INC.
