Section 20 (Propeller Shaft - Repair - E90/E91)
>>
11 Propeller shaft assembly
>>
26 11 ... Overview of propeller shaft with universal joint
26 11 ... Overview of propeller shaft with universal joint
WARNING:
This page is about a different variant/trim than selected.

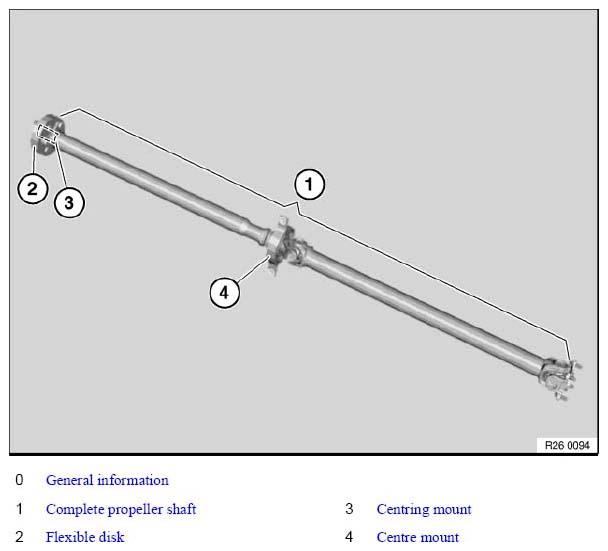

Fig 1: Identifying Propeller Shaft With Universal Joint, Flexible Disk, Centering Mount And Centre Mount
Courtesy of BMW OF NORTH AMERICA, INC.
